Features

Design benefits

jumping surface

4.20m diameter to provide 11.1 m² of safe jumping space.

easy assembly / dismantling

No screws, no tools! Just imagine the ease of assembly and winter storage

modularity

Click! The posts fold down for placing a tarp and limiting its wind load.

bounce

Wave to the stars thanks to the dynamics and bouncing comfort of the 88 springs

Design details

CERTIFIED CE STANDARD

Complies with CE trampoline standards (EN 71-14, EN 71-1 2014+A1:2018, EN 71-2:2020, EN 71-3+A1:2021). These standards outline the requirements and testing methods applicable to trampolines used for at home. These requirements and test methods cover the following (among other things): construction, structural resistance properties, shock absorption, and even jumping surface... Reports are available on demand.

EASY SET-UP AND STORAGE

This trampoline is assembled and disassembled with no screws or tools. The parts connect to each other, ensuring its robust and ease of installation and winter storage. The net posts fold down without tools in a few seconds, so that you can install our protective tarp (sold separately) in just a few seconds and reduce its wind load by nearly 50%. (wind tunnel test). Our pairs of adult testers took up to 50 minutes to assemble the trampoline.

SAFETY DURING USE

Our product design is guided by the safety of our young users. - A stretched protective net made from polyethylene material and an entry lock ensure that the jumping area is always closed and secure. - The net posts are far from the jumping area and surrounded by embossed protective foam pads. - For greater safety, the net is designed to prevent access to the springs when on the jumping surface. - Spring protection foam is 30 cm wide by 20 mm thick.

SAFE MATERIALS

All our trampolines not only comply with trampoline standard EN 71-14 and toy standards, but have also undergone many additional tests by accredited external laboratories to ensure that they do not present any health risks to our youngest users (Phthalates, Formamide, bisphenol A, S).

ROBUSTNESS OF METAL PARTS

Our materials are sturdy. - All of the tubes on the frame are warrantied for 5 years and comply with ISO 8493 and ISO 8492 standards to ensure the stability of their resistance. Made of heat-galvanised steel, they provide excellent rust resistance. - All of the springs, with a 24 mm diameter and 29 spirals, are made of steel treated to prevent rust via electro-zincing. They have a 4N/mm stiffness. In the lab, they undergo 45000 cycles of extension from 15 to 95 mm without breaking or failing.

ROBUSTNESS OF SOFT PARTS

- The polypropylene jumping surface withstands UV rays (material used for sailing boat ropes) - The UV-resistant protection net made from polyethylene material withstands tensile forces far beyond standard conditions of use. - The foam protection on the posts is embossed with a crossed weave for more lasting robustness.

Stability

The 4 W-shaped feet with 2 points of contact ensure optimal stability. The stability is tested in use and in the lab for strict compliance with standard EN71-14 to ensure a dynamic user weight of 110kg and a static deflection of the jumping surface of 550kg.

BOUNCE QUALITY

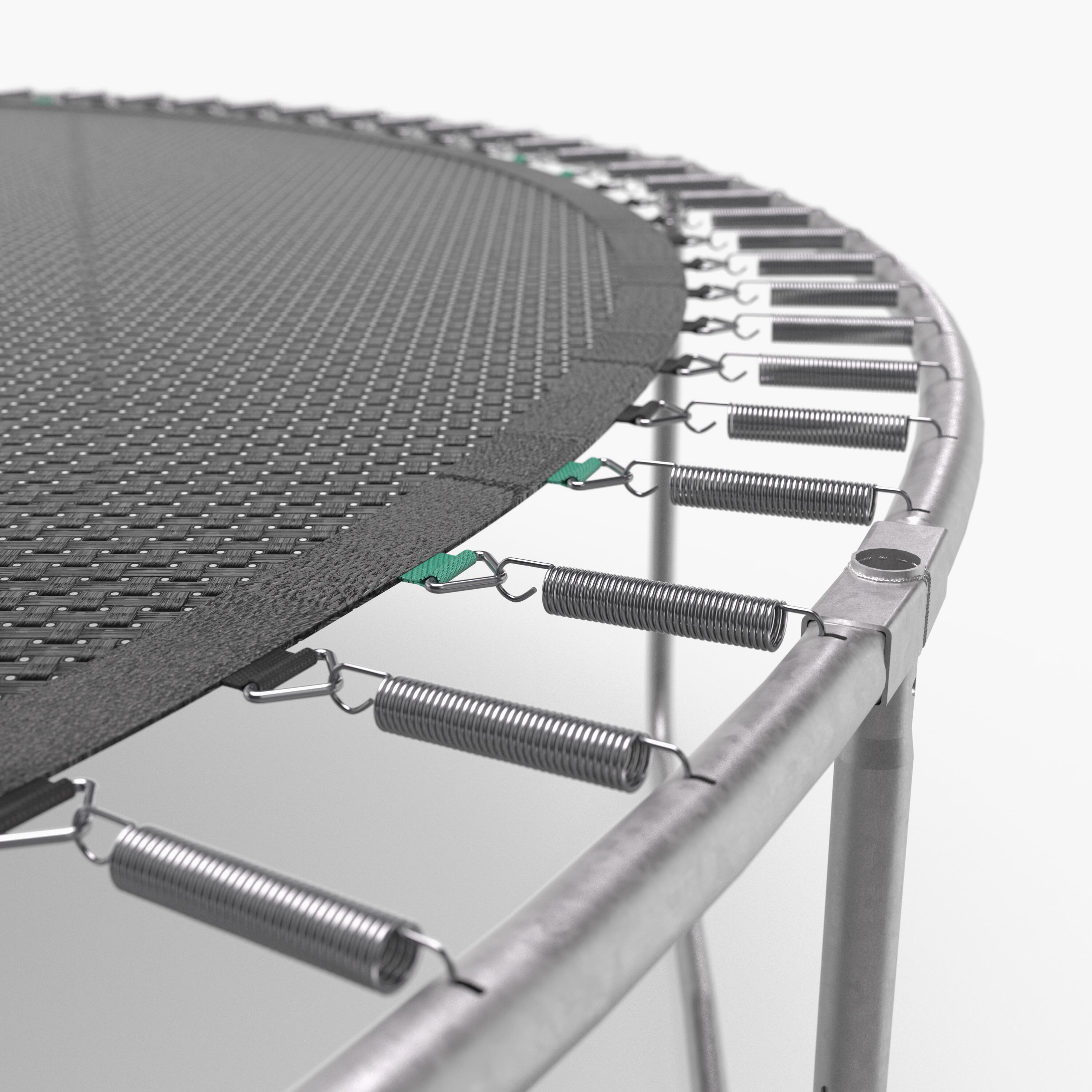

The 88 springs, with 29 spirals of 24mm diameter and 141mm length, have a tensile strength of 57N. Combined with a 377cm diameter jumping surface, they ensure an excellent bounce quality and comfort thanks to their progressive shock absorption.They are adapted to suit a wide range of jumper weights, particularly the lightest ones, to ensure excellent user comfort all while offering great robustness for the heaviest among us.

WHY A 110 KG USER, WHEN THE COMPETITION OFFERS TRAMPOLINES FOR 150 KG USERS?

Most jumpers weigh between 20 and 50 kg (ages 6 to 12)... But we know that adults love to jump, too. So we've designed a product with great robustness (550 kg static), BUT WHICH IS GOOD FOR CHILD DEVELOPMENT. Why 110 kg and not 150? Because at 150 kg, to meet the robustness standard (750 kg), we would need to use springs that are too stiff and which would harden the jumping surface. This would interfere with the joint strengthening of users under 40 kg as they jump.

REPAIRABILITY

100% of the trampoline's components are available as spare parts for 10 years after the date of the last item sold. Each spare part comes with a tutorial for easy replacement at home. Parts can be ordered via the after-sales service link a bit further down the product file.

PRODUCT COMPATIBILITY

3-step ladders Protective tarp 420 Anchor kit Weighted bag Ball target High jump band

PRODUCT DIMENSIONS

Total diameter: 4.20 m Total height: 2.75 m Total weight: 72 kg Jumping surface size: 11.1 m² (⌀ 3.77m)

PARCEL DIMENSIONS

1 Box: L: 1630 mm W: 570 mm H: 325 mm Weight: 76 kg

ASSEMBLY TIP

Want to prevent your trampoline from making noise? We have the solution! When assembling your trampoline, lubricate the metal joints with Teflon oil to prevent them from rubbing together: Reference: 8299115

RECOMMENDATIONS AND RESTRICTIONS

It is strongly recommended that jumpers wear socks with silicone pads to prevent slipping. Designed exclusively for outdoor use. Not suitable for kids under 3 years.Parental supervision required. Standards stipulate that only one jumper may be on the trampoline at a time to avoid collisions and injuries. We highly suggest you leave a space of 2 metres around your trampoline.

level of practice	beginner
place of practice	outdoor
condition	new
length of the trampoline	400 to 450 cm
maximum static load	over 400 kg
maximum jumping load	100 to 150 kg
trampoline shape	round
ground anchor level	on feet
fixing of the fabric	metal spring
protective net	with protective net
posts	folding posts
front bar	sold without front bar
trampoline's ladder	sold without ladder
trampoline's protective skirt	sold without protective skirt
trampoline's anchor kit	sold without anchor kit
trampoline's cover	sold without cover
trampoline diameter	400 to 500 cm
width of the trampoline	400 to 450 cm
