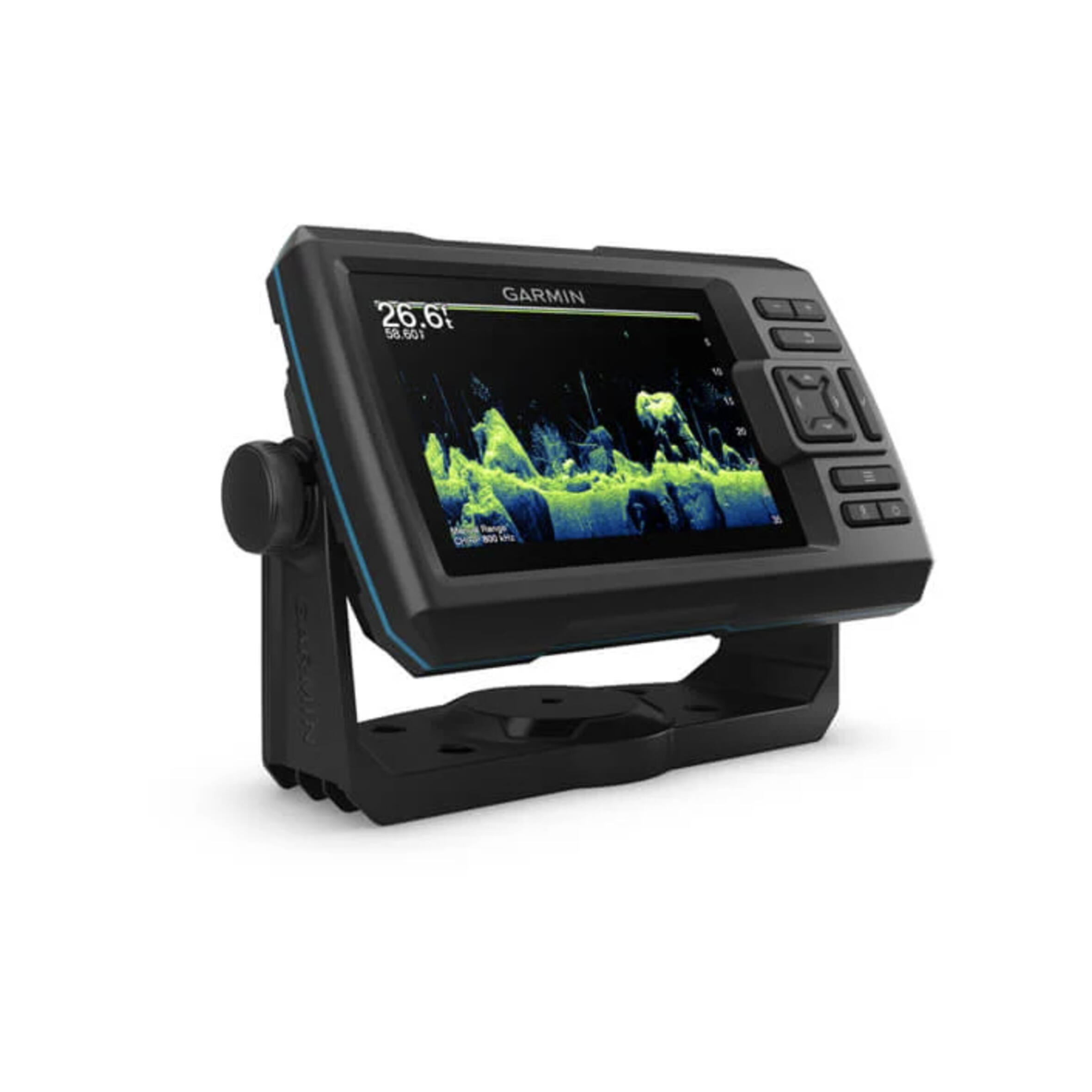

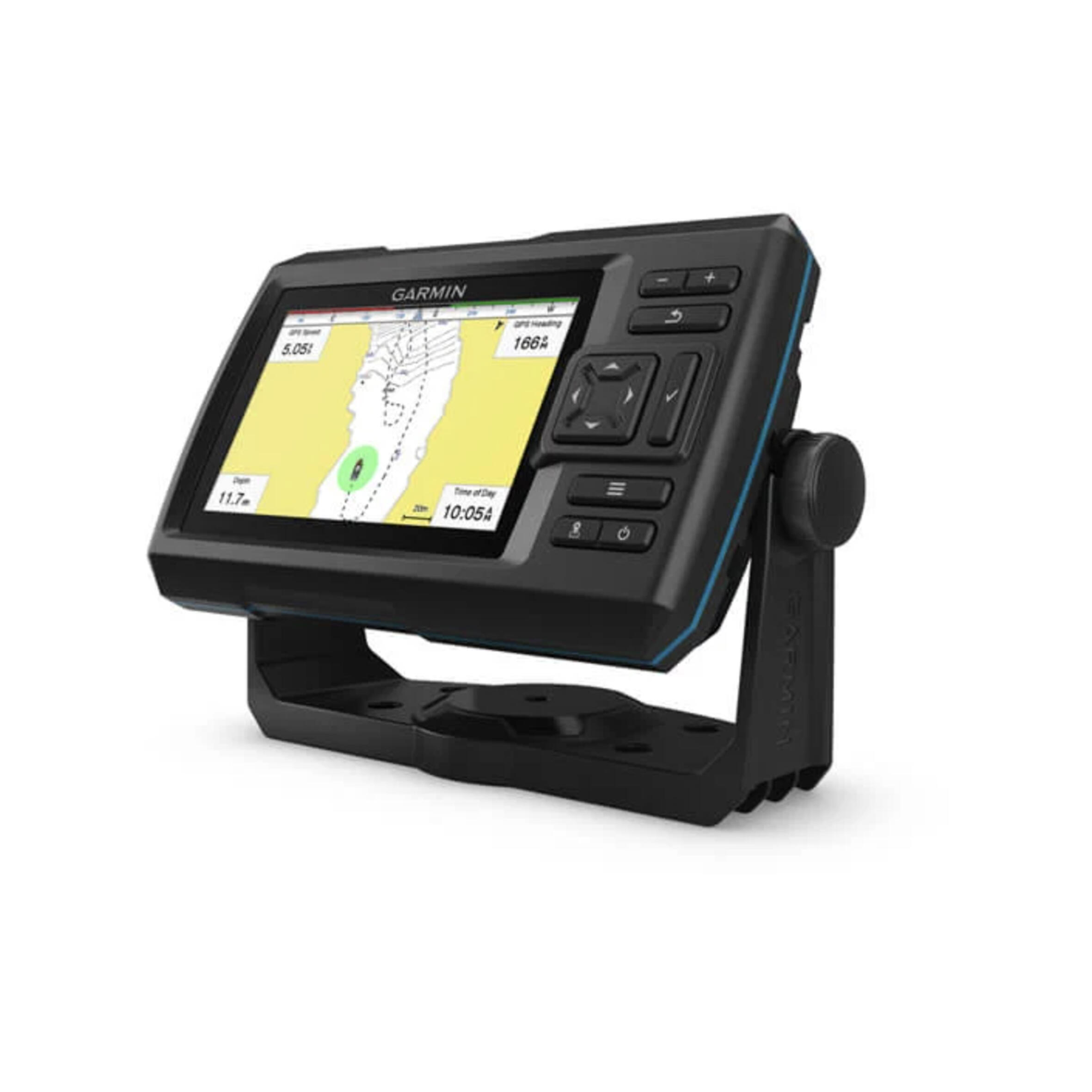

FISHING SONAR STRIKER VIVID 5CV
Detecting fish, structures and vegetation becomes extremely simple with the Garmin Striker VIVID 5cv sonar. The GPS enables you to save spots and create maps.
ID 8667664
- 1-year warranty
- 365 days to return for members
precisionHigh-sensitivity GPS to mark and navigate to waypoints.
visual efficiency7 vibrant colours to see fish and structures with precision and clarity.
capacityStore up to 8000 km² of bathymetric contour charts with contours every 30 cm.- visibility5-inch screen to assess the elements detected by the sensor.
- FEATURES- Fishfinder dimensions: 18.8 x 11.6 x 5.4 cm - Display format: 5 inches - Weight: 500 g - Waterproof rating: IPX7 - Display type: WVGA Colour - Display resolution: 800 x 480 pixels - GT20 sensor - Traditional mode: 50/77/200 kHz CHIRP (medium and high) - ClearVü Mode: 260/455/800 kHz - Quickdraw Contours feature - Highly sensitive GPS - Transmission power: 500 W (RMS) - Maximum depth: 700 metres - Course Over Ground (COG) - Consumption set to 12 V: 0.40 A
- CLEAR AND COLOURFUL SONARThe colour you choose for your sonar says a lot about your fishing style. The good news: There are 7 new striking options for the Striker Vivid! According to your preferences, select the most suitable colour to see fish and the bottom’s structure with maximum contrast and clarity on your sonar’s 5-inch screen.
- HIGHLY SENSITIVE GPS - WAYPOINTS MARKED - QUICKDRAW CONTOURSPlan and create routes, then display the speed of your boat on the sonar using the highly sensitive GPS. To catch more fish, you need to know where the fish bite. Use the waypoints markings to easily find the way back. You know the waters you fish in better than anyone else. With the STRIKER VIVID 5cv sonar, you can store up to 8,000 km2 of maps with depth contours of 30 cm (1 pi).
- HARDWARE INCLUDEDUse the GT20 sensor provided to obtain views from the traditional Garmin CHIRP sonar and CHIRP ClearVü scanning sonar. The STRIKER VIVID 5cv sonar includes a tilt/swivel mount, as well as hardware and a cable for mounting to the transom and electric motor. In the box: - STRIKER Vivid 5cv - GT20-TM Sensor - Power/data cable - Tilt/swivel mount - Hardware - Garmin label - Documentation
Features
Design benefits
Design details
Specifications
Details
| level of practice | advanced |
| frequency | intensive |
| color screen | with color screen |
| gps | with gps |
| touch screen | without tout screen |
| ip waterproofness | IPX7 |
| weight (in g) | 500 g |
| condition | new |
| power supply (in V) | 12 V |
| screen size | 5" |
| length (in mm) | 180 mm |
| width (in mm) | 115 mm |
| thickness (in mm) | 50 mm |
| navigation boutons | with buttons |
| type of frequency | multiple frequency |
| frequency (kHz) | 200 kHz, 260 kHz, 50 kHz, 800 kHz, 77 kHz, 455 kHz |
| screen definition | 800 x 480 pixel |
