Features

Design benefits

easy transport

Takes just 15 seconds to unfold and switch from pedestrian to cyclist.

versatility

Discover new horizons with the 7 speeds.

compact design

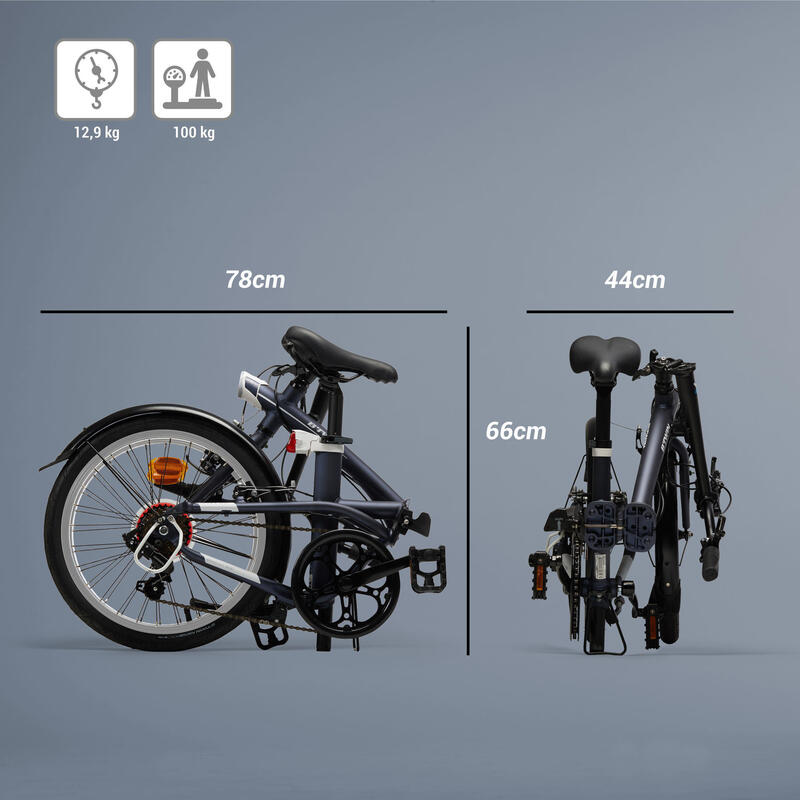

Folded L/H/W: 78 x 66 x 44 cm.Unfolded L/H/W: 148 x 110 x 58 cm

weight

12.9 g

Design details

Frame

6061 T6 aluminium frame—lightweight, dynamic and sturdy. The very easy side-fold system with a lever helps to save up space: at home, at the office, in the boot of a car or in a camper... you'll forget your bike is even there. There is a mechanism to quickly lock the frame and stem so that you can keep the bike folded and transport it easily. In order to improve your bike's stability once folded, the frame is equipped with a bike stand under its base.

Fork

Hi-ten steel fork for greater durability.

Drivetrain

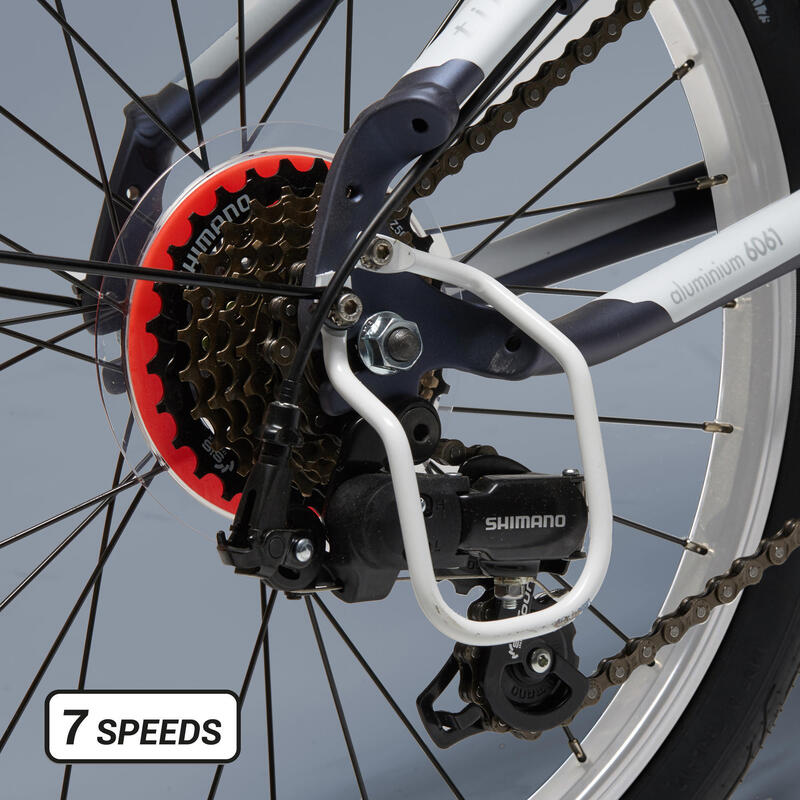

Thanks to the Shimano 7-speed derailleur, the Tilt 500 can easily cope with any gradient and lets you adapt your effort throughout your ride (pushing off at traffic lights or accelerating in a straight line, for example) The Shimano Revo-Shift shifter is ergonomic and precise. Distance travelled per turn of the crank: - smallest development: 2.96m per turn of the pedals, 28 teeth - largest development: 5.90 m for every pedal turn, 14 teeth

Brakes

Steel V-brake and callipers guarantee effective and progressive braking.

Handlebar / stem / steering

Semi-raised aluminium handlebars with a 60 mm rise for adjusting the steering position to suit your body shape and improve handling. Handlebar width: 560mm. Fixed aluminium stem with quick-release lock for greater stiffness compared to a height-adjustable stem. Distance from saddle to handlebar: 540 mm. Bottom bracket to saddle distance: 480 mm to 780 mm

Saddle/Seat post

Comfortable, seamless foam saddle to stop water getting in. Anti-theft, anti-rotation aluminium seat post 31.6mm in diameter.

Wheels

20-inch, single-walled aluminium rims.

Tires

Tyres with anti-puncture reinforcement. Size 20 x 1.75. We've developed these tyres using Skinwall technology for lower weight and higher performance. To minimise the risk of punctures and increase your bike's performance, inflate your tyres to between 3.5 and 4.5 bar.

Crankset

The fold-up pedals reduce bulk when the bike is folded. Once pedals are folded up and the stem folded down, the bike can be stored against a wall and takes up very little space (26 cm wide). Steel cranks: 170mm.

Accessories / equipment

Equipped with a stand, a mudguard with stays, and a double chainguard to prevent chain slipping and protect from dirt. Front and rear battery-powered lights.Rear lighting screwed on to avoid risk of theft.

Compatibility

Bike compatible with: - TILT transportation cover - B'TWIN folding bike pannier rack - Hamax and Bike Original brand kids bike trailers The TILT 500 is incompatible with a baby carrier.

frequency	regular
suspension	stiff
power assisted	without electric assistance
stand	with stand
number of speeds	7 speeds
bike frame material	aluminium frame
lighting types	battery lighting, front light, rear light
mudguard	with mudguard
number of chainrings	single chainring
wheel size	20"
type of brakes	vbrakes
type of spanning	low spanning
maximum load	100 kg
age	over 14 years and adults
connected	not connected
baby carrier compatibility	baby seat not-compatible
condition	new
folded height (in cm)	66 cm
folded length (in cm)	78 cm
rim material	aluminium
rim type	double thickness
sportsperson's height	145 cm < height < 185 cm
trunk bag fixation	trunk bag fixation
charger type	not concerned
battery capacity (in Wh)	not concerned
motor position	not concerned
engine torque maximum	not concerned
removable battery	not concerned
pedal type	folding
bell	with bell
trailer compatibility	not compatible for trailers
tyre width x wheel size	20*1.75
chain type	chain
anti-theft saddle	non secure saddle
moving comfort	rolls in folded mode
type of holding folded	with magnet, with clip
folding type	lateral folding
folded width (in cm)	44 cm
unfolded length (in cm)	148 cm
unfolded height (in cm)	110 cm
unfolded width (in cm)	58 cm
connectivity	not connectable
front disc size (in mm)	not concerned
built-in battery	not concerned
crankset	52
weight (in kg)	12.9 kg
stem type	foldable
type of hinge	quarter-turn lever
autonomy (in km)	not concerned
