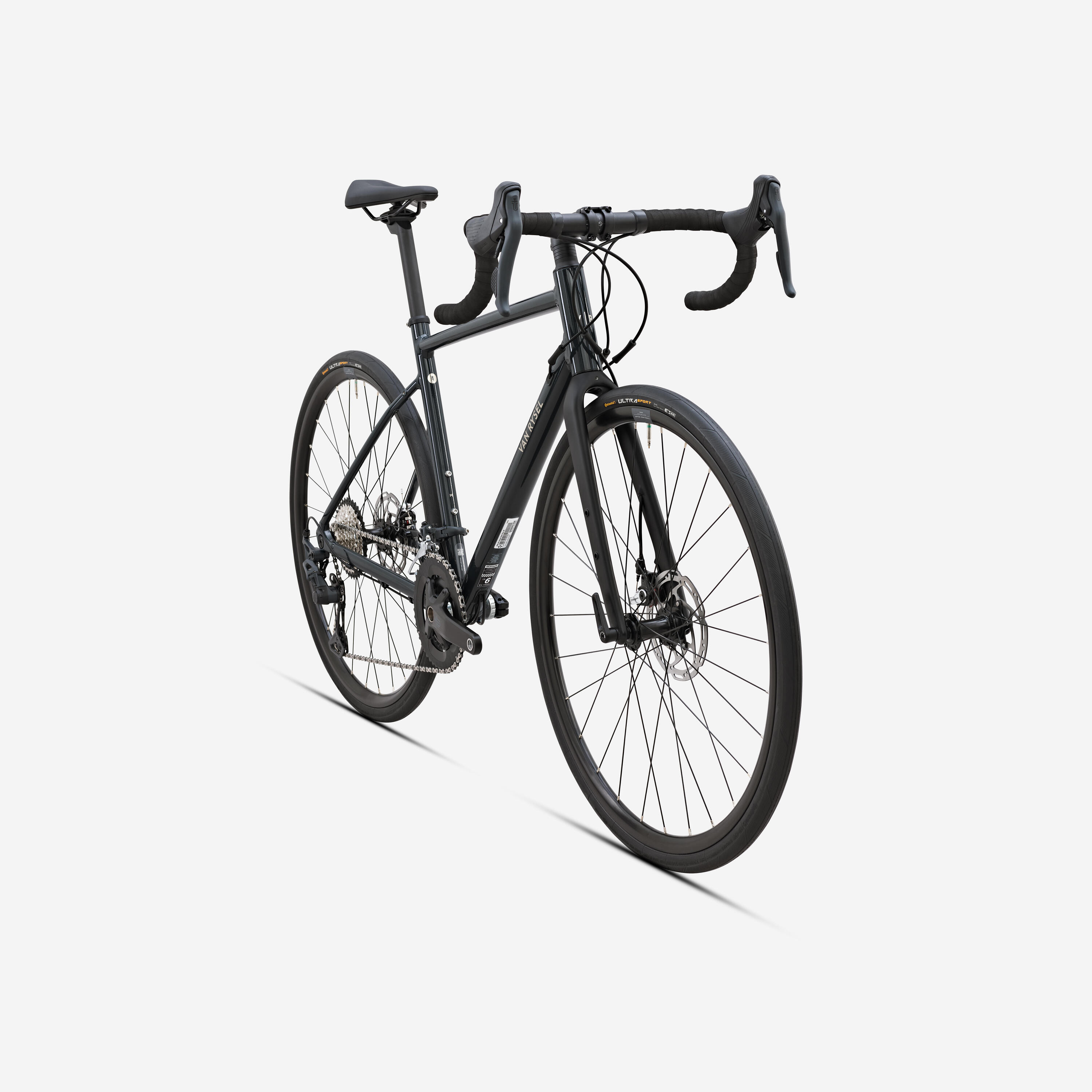

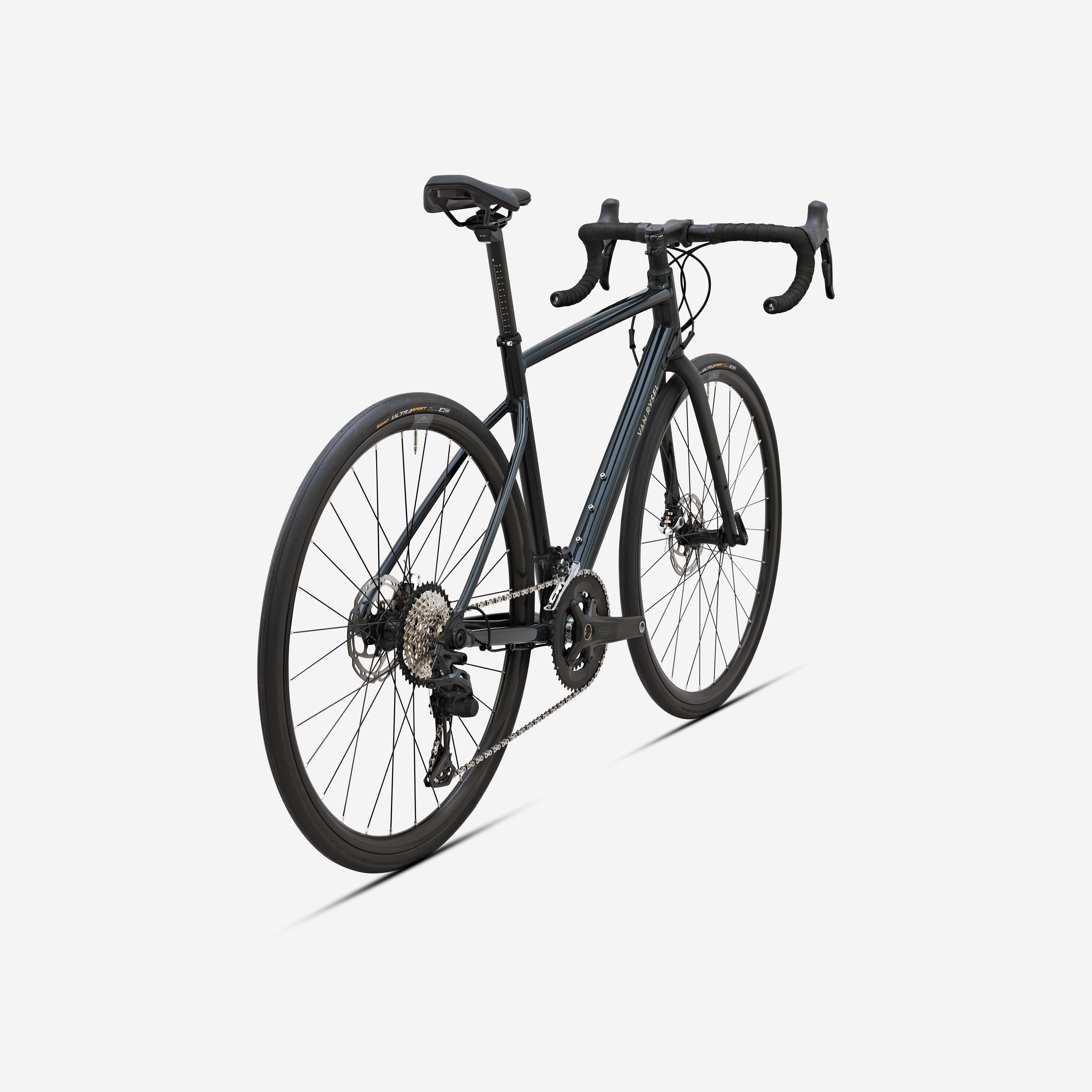

Road Bike EDR AF - Microshift Sword 2x10v - Dark grey
Its Microshift Sword 2x10 speed drive train, 32 mm wide tyres and double-piston mechanical disc brakes make it the perfect companion to start enjoying road cycling!
- 365 days to return for members
speedMicroshift SWORD 2x10V drive train - 31/48 chainring -11/38 cassette
brake controlTRP Spyre double piston mechanical disc brakes
rolling efficiencyAluminium wheels - Continental Ultra sport II tyres (700x32) - 38 mm clearance
weightAluminium frame - Carbon fork/Aluminium pivot - Bike weight in size M 10.45 kg- THE "EDR AF" ENDURANCE BIKE RANGEOur ENDURANCE EDR AF range of bikes is designed for starting out and learning to enjoy road cycling.Whether to make your daily rides more athletic, share bike rides with friends or family or adventure out in your neighbourhood at the weekend, you will enjoy the pleasure of road cycling with our EDR AF bikes.The ergonomics of our EDR AF range have been designed for you to eat up the miles with optimal comfort.
- ALUMINIUM FRAME FOR BETTER COMFORTThe EDR AF frame has been improved, while maintaining a geometric design that is already popular with our customers.It is made with double-walled 6061 aluminium for a more sporty, playful bike yet with the comfort of aluminium.Part of the cables has been built into the frame for a more modern look, but they're still easy to adjust and maintain on the handlebar.The size M frame weighs 1,586 g.The frame can fit a maximum tyre width of 38 mm or 35 mm with mudguards.
- CARBON FORK FOR GREATER PRECISIONThe EDR AF fork is made of carbon for rigidity and propulsion, with an aluminium pivot to guarantee sturdiness.Weight: 642 g in size M Maximum tyre width 38mm or 35mm with mudguards.

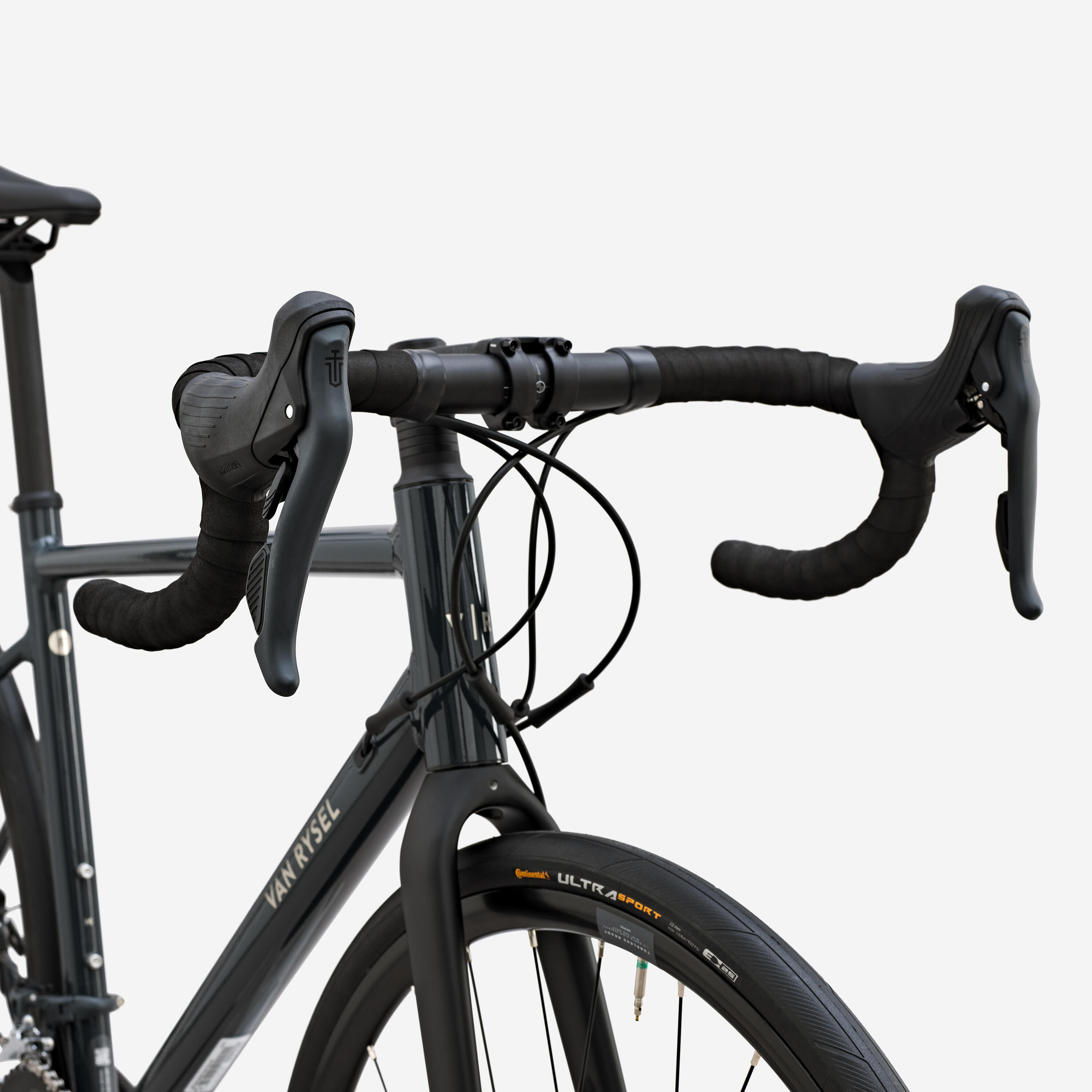

- RIDING POSITION:HANDLEBAR AND STEMHandlebar: Aluminium 6061 T6 diameter 31.8 mm AERO 4° backsweep, 130mm drop Handlebar size depending on the bike size:XS: 380 mm S : 400 mm M - L: 420 mm XL: 440 mm Stem: 6061 T6 7º/ -7º aluminium Stem size according to frame size:XS: 80 mm S : 80 mm M : 100 mm L : 110 mm XL: 120 mm Bar tape: EDR Ultra bar rape

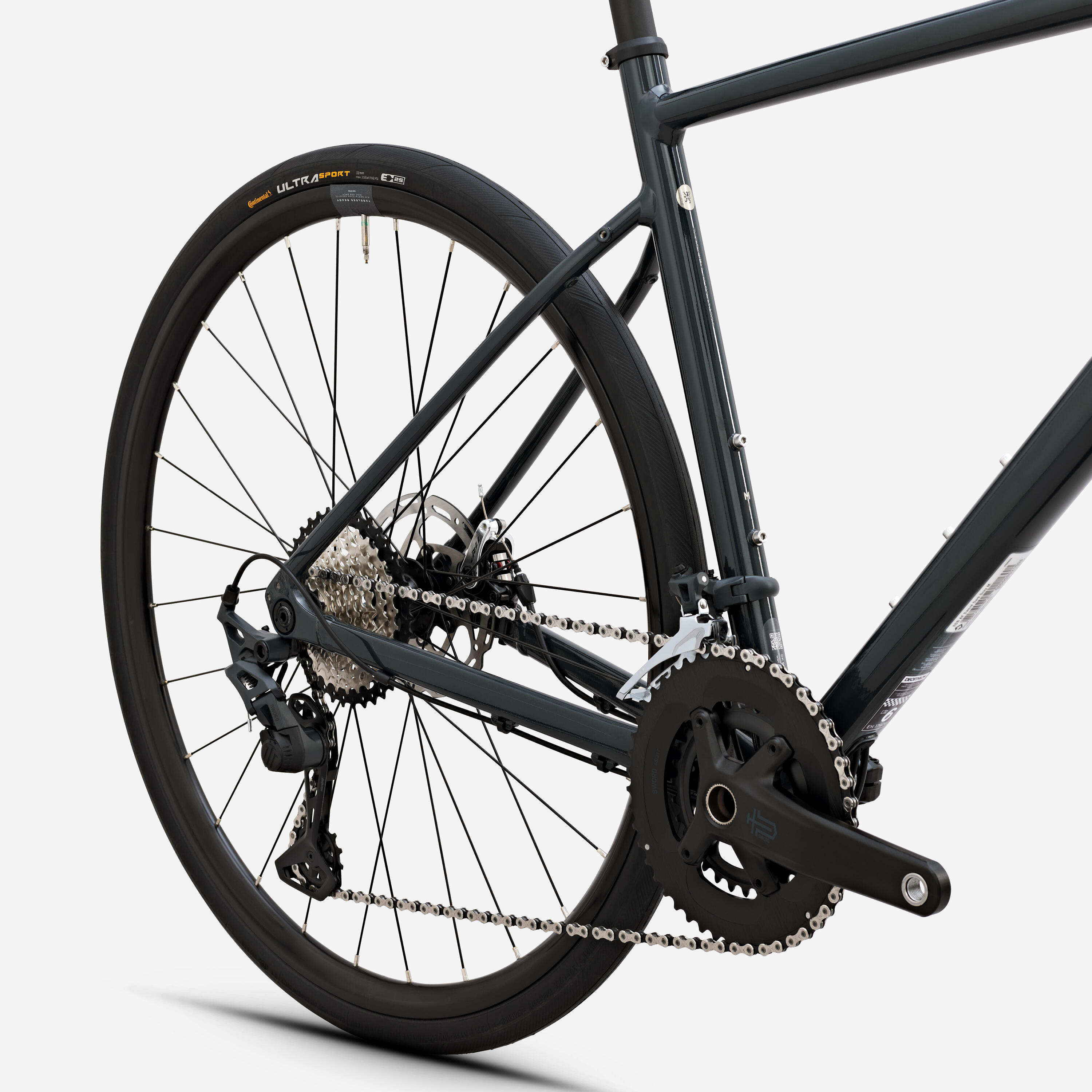

- MICROSHIFT SWORD 2x10 speed DRIVE TRAINThis bike comes with a MICROSHIFT SWORD double chainring drive train and 10 gears.SB-G7000-R-10S and SB-G7020-2L shifter Microshift Sword FC-G7000 31/48T bottom bracket Crank length:XS -165 mm S -170 mm M -172.5 mm L/XL -175 mm FD Sword High clamp FD G7020 front derailleur RD-G7025L rear derailleur CS-G105-10 cassette - 10 speed -11/38T
- MECHANICAL DISC BRAKESThe EDR AF Microshift Sword is equipped with TRP Spyres double-piston mechanical disc brakes for better braking efficiency.Brake levers: SB-G7000-R-10S and SB-G7020-2L Front and rear disc size 160 mm - centerlock
- WHEELS AND TYRES FOR GOOD PERFORMANCEWheels: Aluminium asymmetrical rims Internal width:21mm External width: 26mm Rim height: 24 mm 28 spokes centerlock fastening Front thru axle 12x100mm Rear thru axle 12x142mm Tubeless ready (kit not supplied) Wheel weight:2 kg Wheels compatible with a minimum tyre width of 25 mm.TyresContinental Ultra sport II (700x32) PureGrip COMPOUND 3*60 TPI = 180TPI Recommended pressure 4.5 bar
- Position:Saddle and seat postDECATHLON COMFORT 30º saddle Width:155 mm Length: 250 mm Steel clamp Seat post:VAN RYSEL 6061 T6 aluminium Diameter 27.2 mm Seat post length:XS: 250 mm S - M - L: 350 mm XL: 400 mm The natural flex of the seat post thanks to its 27.2 diameter filters vibrations and impacts for greater comfort
- LITTLE THINGS TO KNOW ABOUT THE EDR AFYour EDR AF comes with a box that includes: - Platform pedals, we recommend using clipless pedals to take full advantage of this bike's performance - 2 brake clips - 1 bell - 1 front and rear light - 1 torque spanner
- BIKE WEIGHTThis EDR AF Microshift Sword configuration (without pedals or preventative liquid) weighs approximately:Size XS: 10.3 kg Size S:10.35 kg Size M: 10.45 kg Size L: 10.75 kg Size XL: 11 Kg The maximum load (user + load) is 110 kg whatever the bike size.
- CARE TIPSWe recommend avoiding high-pressure water jets when washing your bike to avoid damaging it.We recommend cleaning your bike after each ride, particularly after confronting difficult weather conditions. In addition, remember to check your tyre pressure and braking efficacy before each ride.
- PROTECTING the FRAMEWhen using bags or other accessories, you can use the following transparent protective stickers: 8486947. Resistant to temperature variations, water, tears and UV rays.
- CHOOSING THE SIZE OF YOUR BIKEYou should choose the size of your bike based on your height, as well as your build (arm span and leg length). If you are between sizes, opting for the smaller size will be more comfortable and make it easier to tackle gravel trails. XS: 154 - 165 cm S: 165 - 173 cm M : 173 - 180 cm L: 180 - 188 cm XL: 188 - 200 cm
Features
Summary
Want to lead a more sporty existence?
Our EDR AF is perfect for enjoying the pleasures of road cycling with the optimal comfort.
ID: 8930227
Design benefits
Design details
Specifications
Details
| level of practice | beginner, intermediate |
| suspension | stiff |
| power assisted | without electric assistance |
| maximum load | 110 kg |
| bike frame material | aluminium frame |
| number of speeds | 20 speeds |
| number of chainrings | double chainring |
| wheel size | 700 mm |
| connected | not connected |
| axle type | through-axle |
| type of brakes | mechanical disc brakes |
| bike frame weight (in g) | 1580 g |
| bike fork weight (in g) | 640 g |
| cassette | 11/38 |
| front disc size (in mm) | 160 mm |
| rear disc size (in mm) | 160 mm |
| wheel material | aluminium |
| wheel set weight (in g) | 2000 g |
| maximum tyre clearance (in mm) | 38 mm |
| charger type | not concerned |
| battery capacity (in Wh) | not concerned |
| motor position | not concerned |
| engine torque maximum | not concerned |
| removable battery | not concerned |
| built-in battery | not concerned |
| weight (in kg) | 10.4 kg |
| autonomy (in km) | not concerned |
| crankset | 48/31 |
Composition
Bike frame: 100.0% Aluminium |
