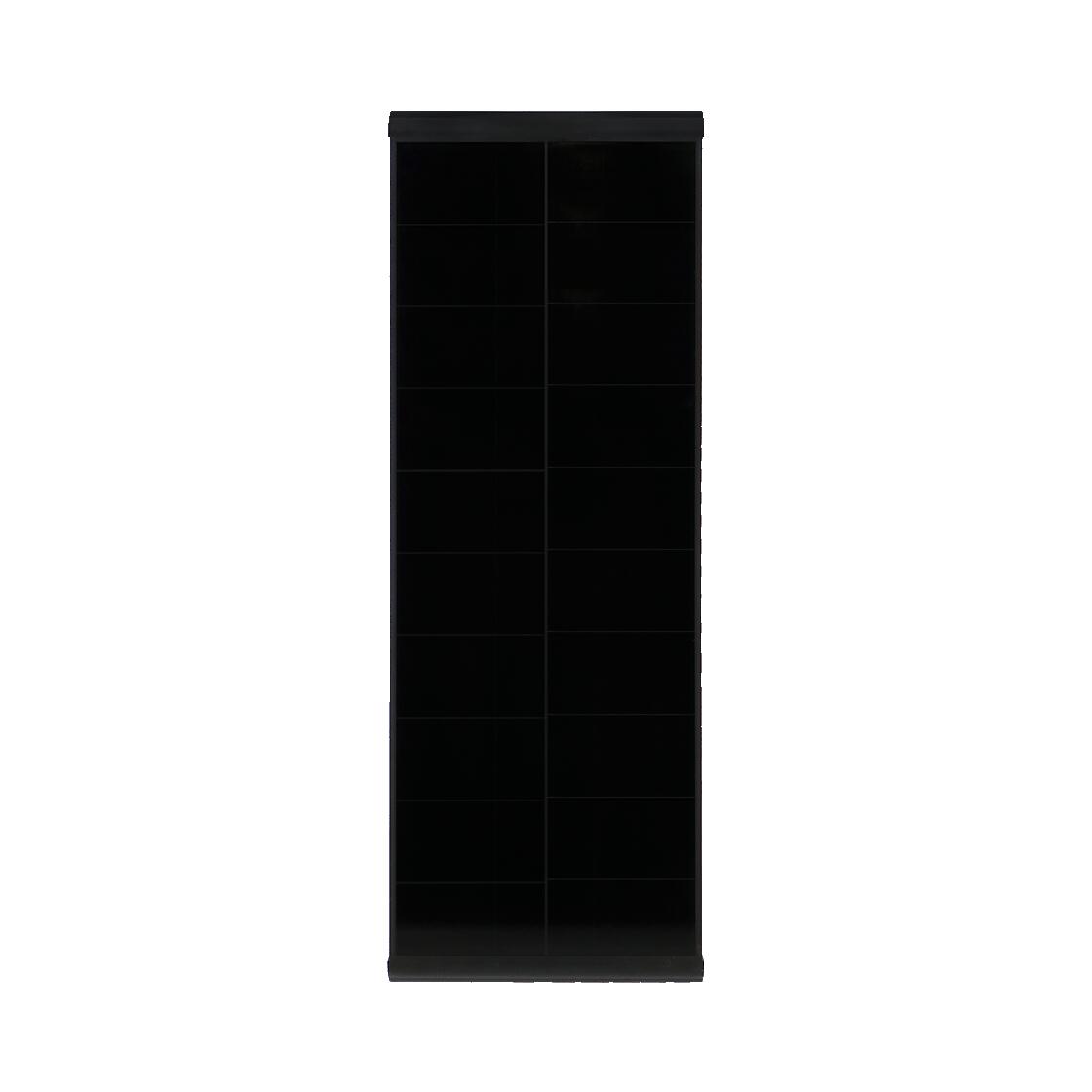

Mestic Solar Panel Back Contact MSBC-150

Mestic Back Contact (BC) solar panels are a significant advancement in solar technology that aims to increase the efficiency of solar panels. This means they can convert a larger percentage of sunlight into electricity compared to traditional front contact solar cells. BC solar cells are designed to minimise photoelectric energy loss. This is achieved by optimising the design to reduce losses due to reflection, shading and other factors that can limit the energy conversion. 25 Year performance guarantee : 85%

• Power degradation first year : 1.5%
• Power degradation subsequent year : 0.55%

Kit Contains Mounting brackets (2pcs) Cable entry gland Rubber connection cable 2.5mm² (500cm) Note: sealant, charge controllers and activator pads available as optional extras. (see related products below) • Model: MSBC-150 • Colour: Elegant Black Appearance • Max power: 150w • Voltage at max power: 26.10v • Current at max power: 5.75A • Open circuit voltage: 29.70v • Short circuit current: 6.10A • No. of cells: 45 • Cell type: Monocrystalline • Operating temperature: -40°C to +85°C • Weight: 8.8kg • Dimensions (HxWxD): 5.4 x 141 x 51.5cm • Warranty: 5 years • Quality mark: CE, ROHS
