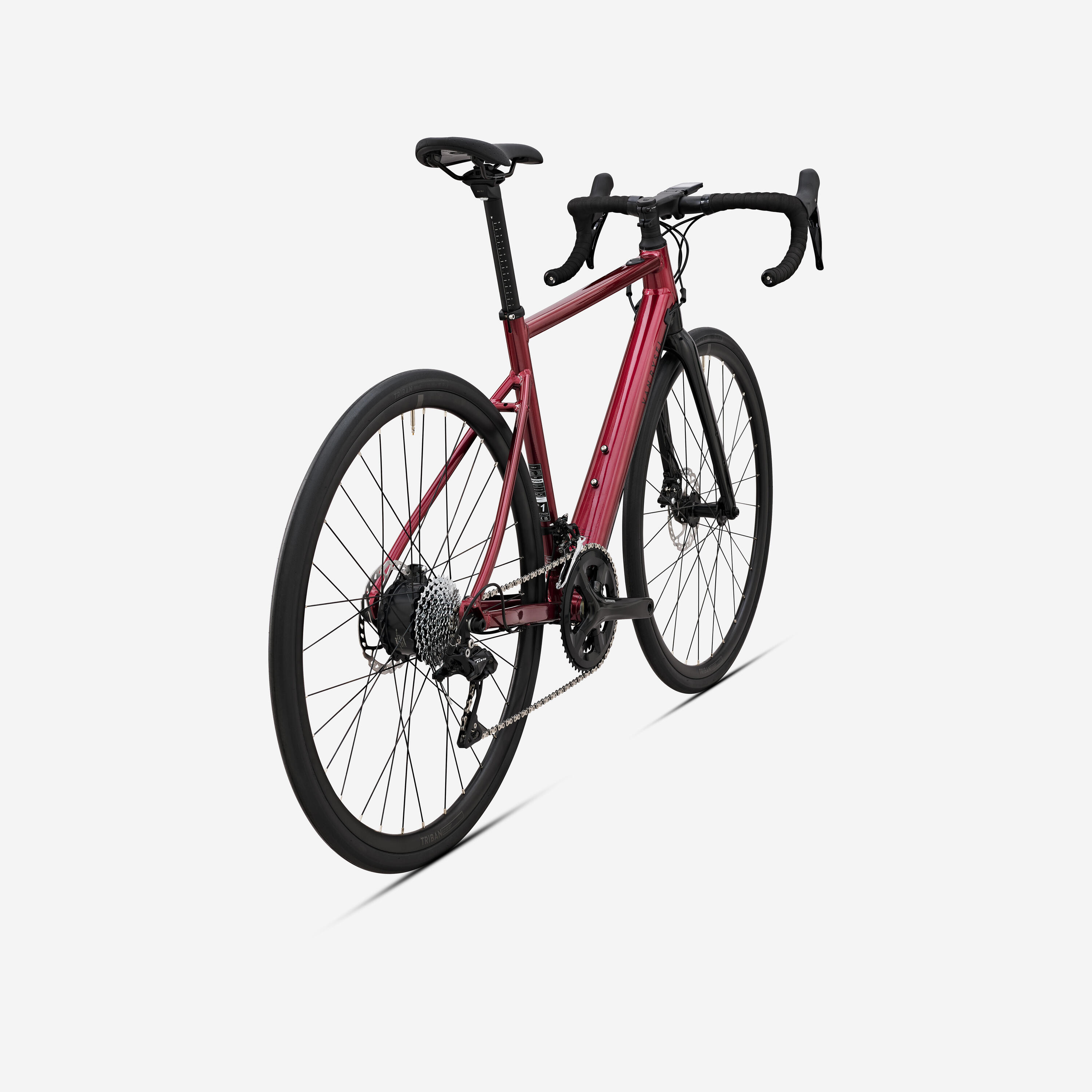

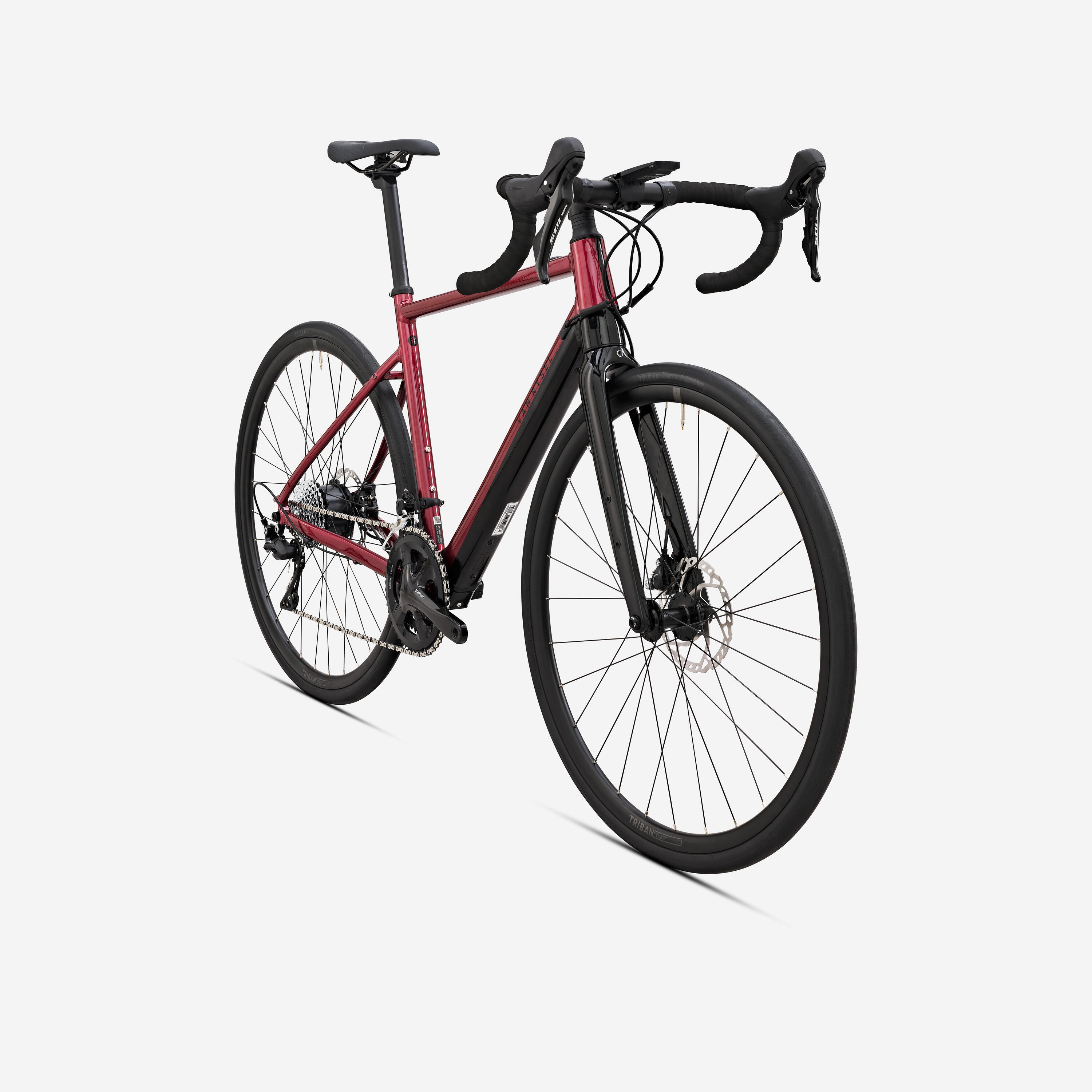

Electrical Assistance Road Bike E-EDR AF 105 2x11S - Red
The almost invisible Mahle X35 electric kit has 3 assistance modes.Its 250 Wh battery gives you up to 100 km of range.
ID 8654837
- 2-year warranty
- 365 days to return for members
powerAttack your climbs with the motor's 40 Nm of torque at 250 W.
autonomyRide over 100 km with its 250 Wh battery and more than 160 km with the extender
precisionQuick, accurate gear changes with the Shimano 105 groupset
lightweightThis electric road bike weighs less than 14 kg in size M- The E-EDR AF EthosThe E-EDR AF is part of our endurance range. AF stands for aluminium frame. The bikes in our endurance range are designed for cyclists whose priority is the pleasure of riding. With its aluminium frame and the Mahle kit (3.5 kg), this electric road bike is both light and comfortable. To keep you safe, the entire range is equipped with hydraulic disc brakes as well as 32 mm tyres.
- What is an E-bike?E-bikes are all the rage right now. E-biking is still cycling ‒ you're not cruising along on a moped. But thanks to the variable assistance, you can travel further afield than normal and take on new challenges. E-bikes are all about enjoyment. They help you get up tough climbs while still having enough energy left to conquer the next one too! There is legislation limiting the speed of e-bikes to 25 km/h. Above this speed, the assistance cuts out.
- What are the bike's capabilities?The Mahle battery and motor kit delivers 250 Wh of battery life. If you want to increase your bike's battery range even more, you'll need to add an external battery. We selected a panel of testers who rode the bike over a 6-month period in different weather conditions, up different gradients and with different assistance levels so that we could give you the most accurate data about this bike. The bike has 3 different assistance levels.
- How does the extender work?The extender is an external battery that you connect to the main battery at the start of your ride. As the main battery drains, the extender starts to fuel it. You can buy the battery extender on our website.
- What to expect from your battery- Marc: experienced bike tourist (8000 km / year) 70 kg Without external battery: 120 km - 1000 m elevation gain - Assistance levels 1&2 - 24.7 km/h average speed - Empty battery With battery extender: 163 km - 1500 m elevation gain - Assistance levels 1&2 - 23.8 km/h average speed - 24% battery remaining. Empty extender. - Diane: regular bike tourist (3000 km / year) 68 kg Without external battery: 60 km - 354 m elevation gain - Assistance level 2 - 23.8 km/h average speed. 5% battery left
- Things to know about the batteryWhen the battery drops below 7%, no matter your assistance level, the assistance will drop to a very low level so that you can get home safely. The battery is designed to last 5 years / 500 charge cycles. After this, it will lose some range. The battery is not removable and must be charged by plugging the bike in. It takes between 4 and 5 hours to charge it fully.

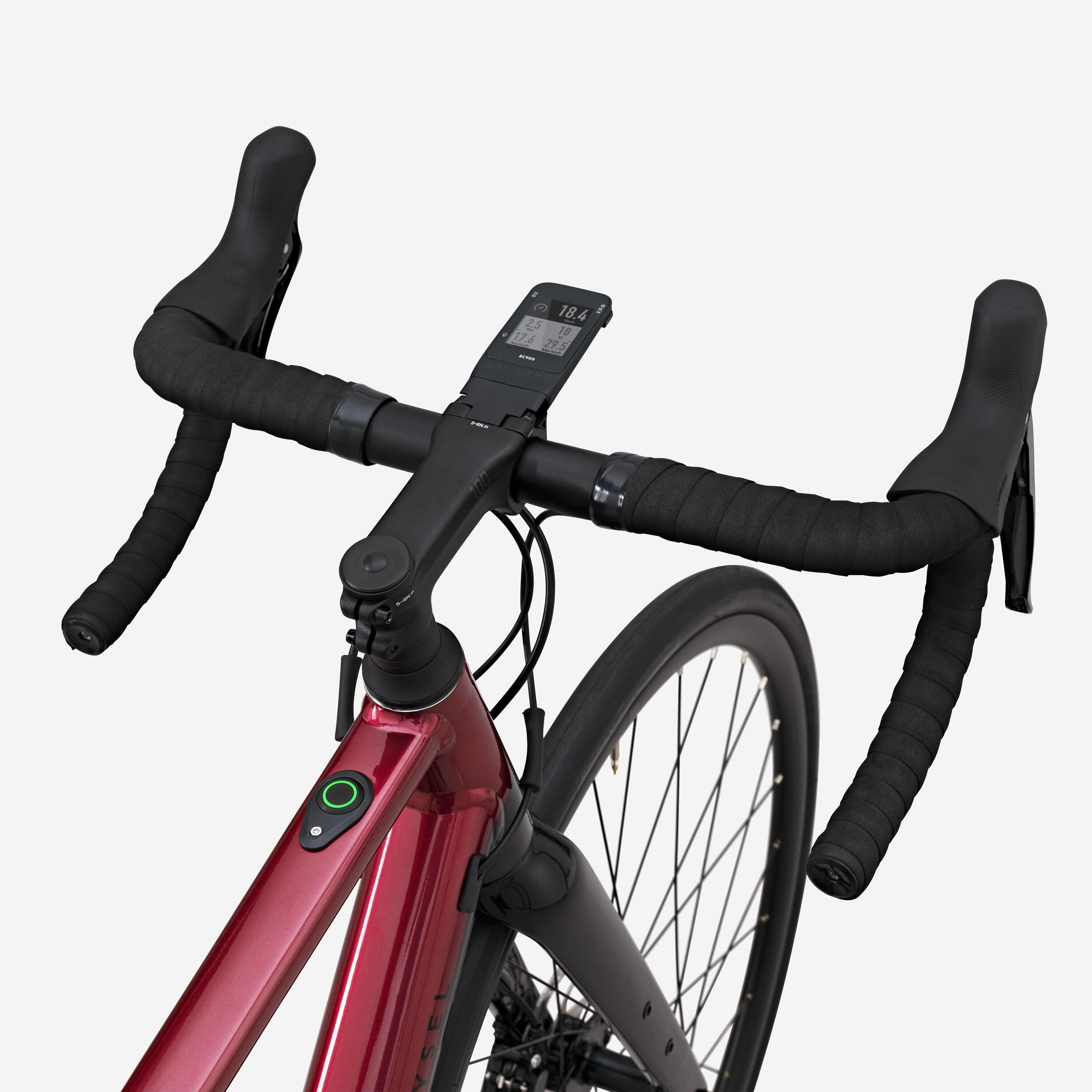

- BC 900 bike computerThis bike comes with the BC 900 bike computer. It has been specially designed for this bike and is the perfect way to interact with your bike. This GPS computer tells you the battery level, how much range you have left and your assistance level. You can connect the BC900 to the Decathlon Connect app for more details on your rides.
- ConnectivityThe Mahle X35 system has Ant+ and Bluetooth so that you can connect your phone or normal bike computer if you don't want to use the BC900. The Mahle app also lets you tweak your settings and access data about your rides.

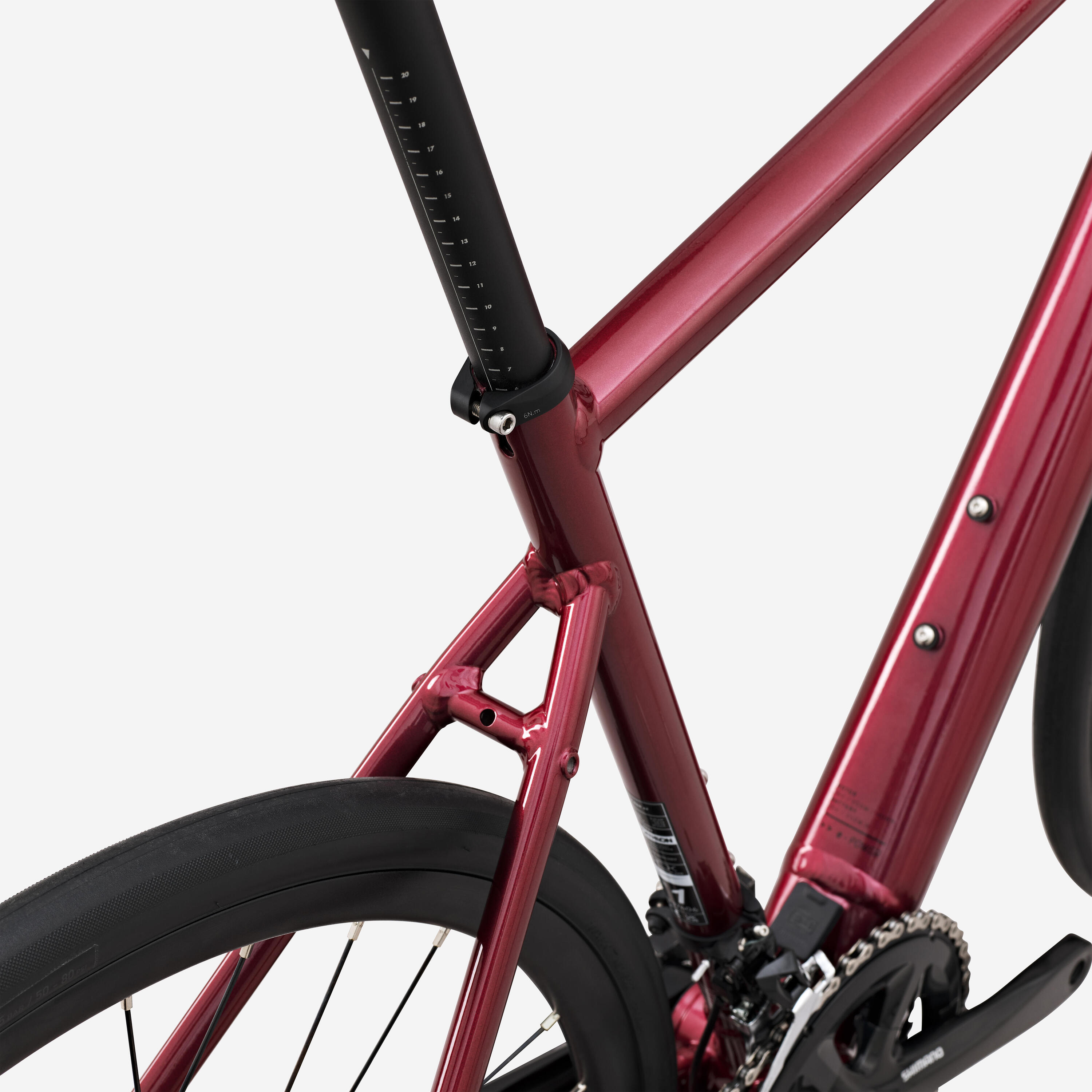

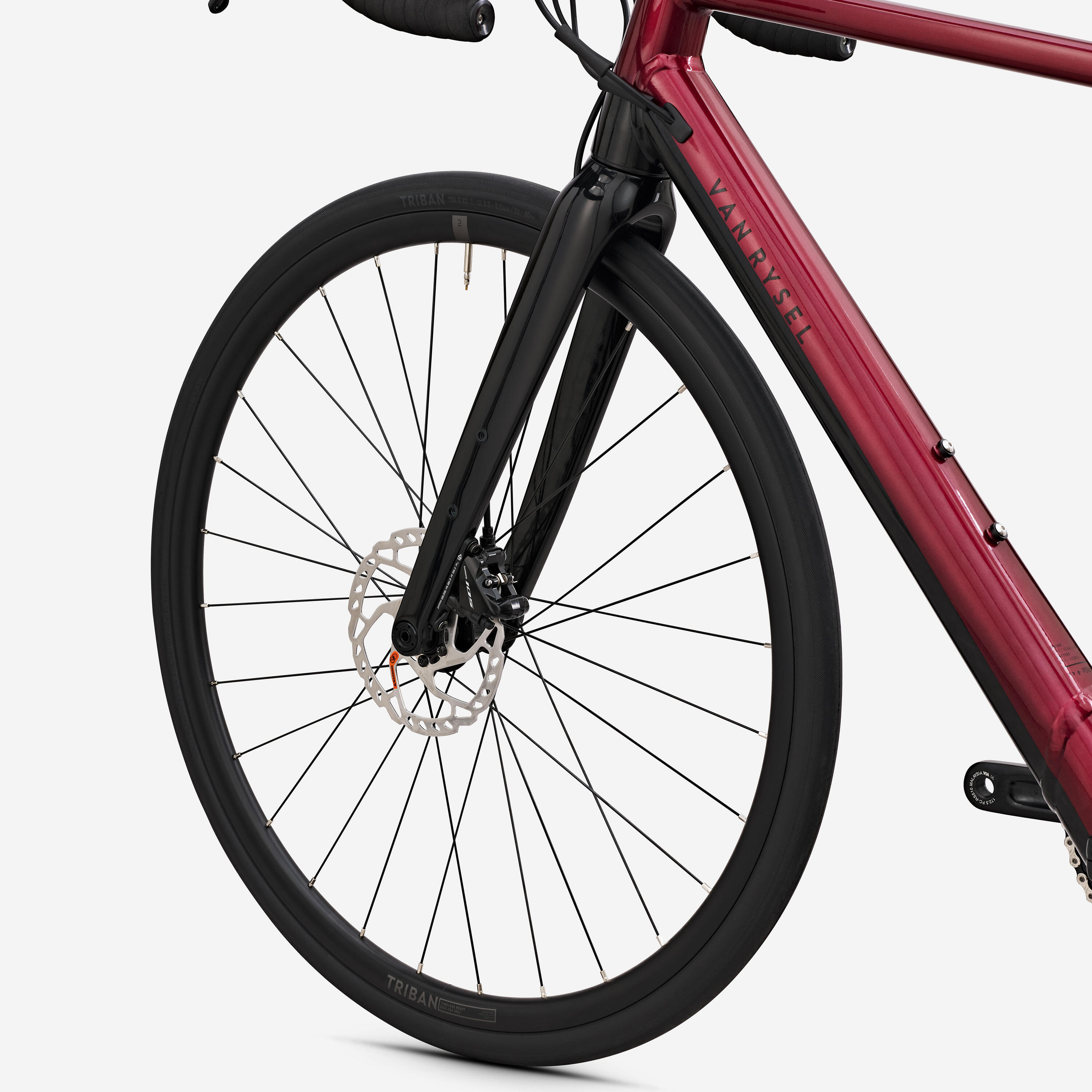

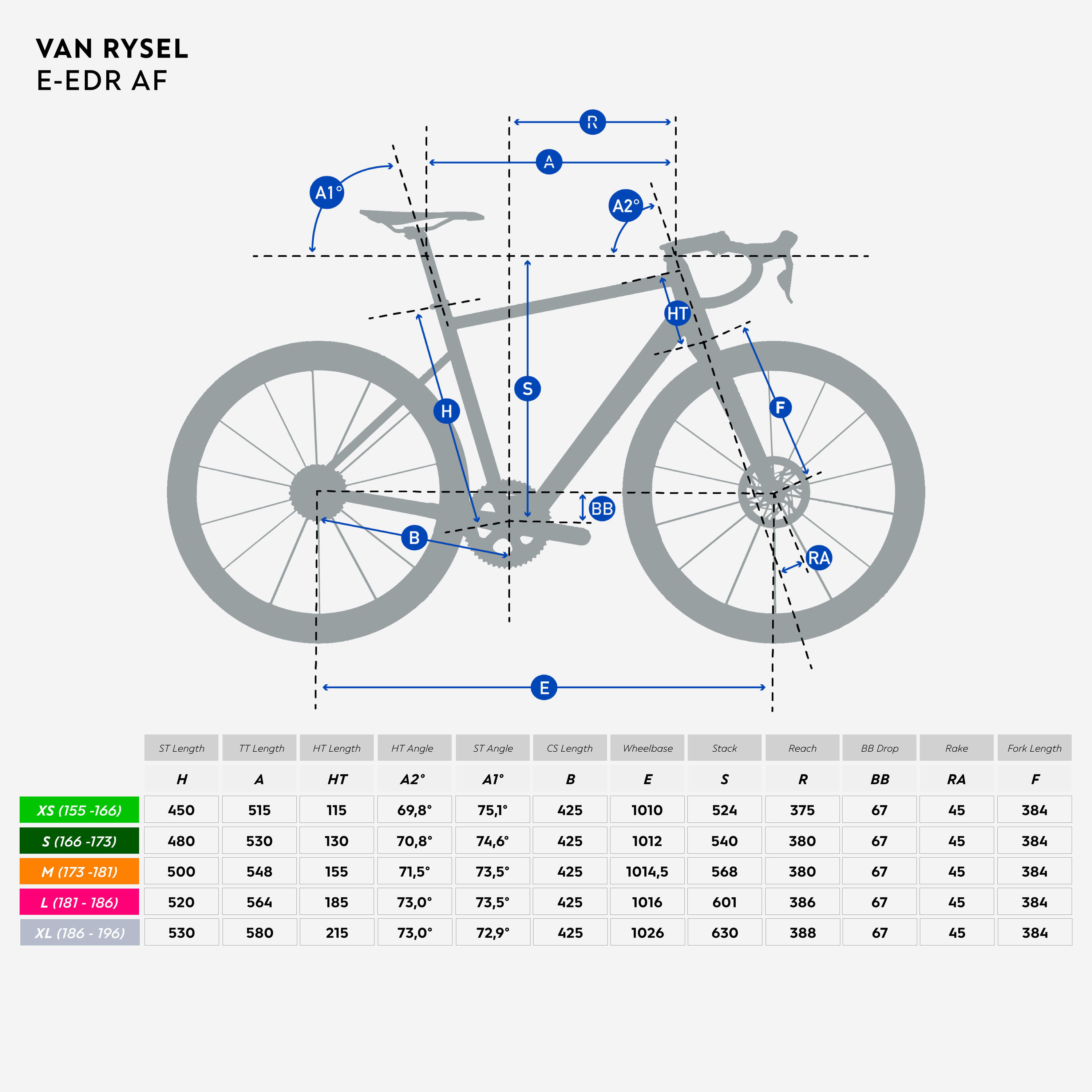

- Frame and forkThe frame has an endurance-style geometry. Everything about this bike is designed so that you can enjoy your ride to the max. The welding is polished smooth on the most visible joints to make the bike more elegant. The fork is 100% carbon for incredibly precise steering. It also has mounting holes on the sides that can carry up to 4 kg on each blade. You can carry up to 10 kg on a pannier rack if you choose to install one.Compatible with tyres up to 700x35.
- Steering positionThe E-EDR AF's cockpit is made entirely of aluminium, with a Van Rysel stem and handlebar. The stem size varies depending on the bike size: XS 80 mm S 90 mm M 100 mm L 110 mm XL 120 mm Handlebar size XS 400 mm S 400 mm M 420 mm L 420 mm XL 440 mm

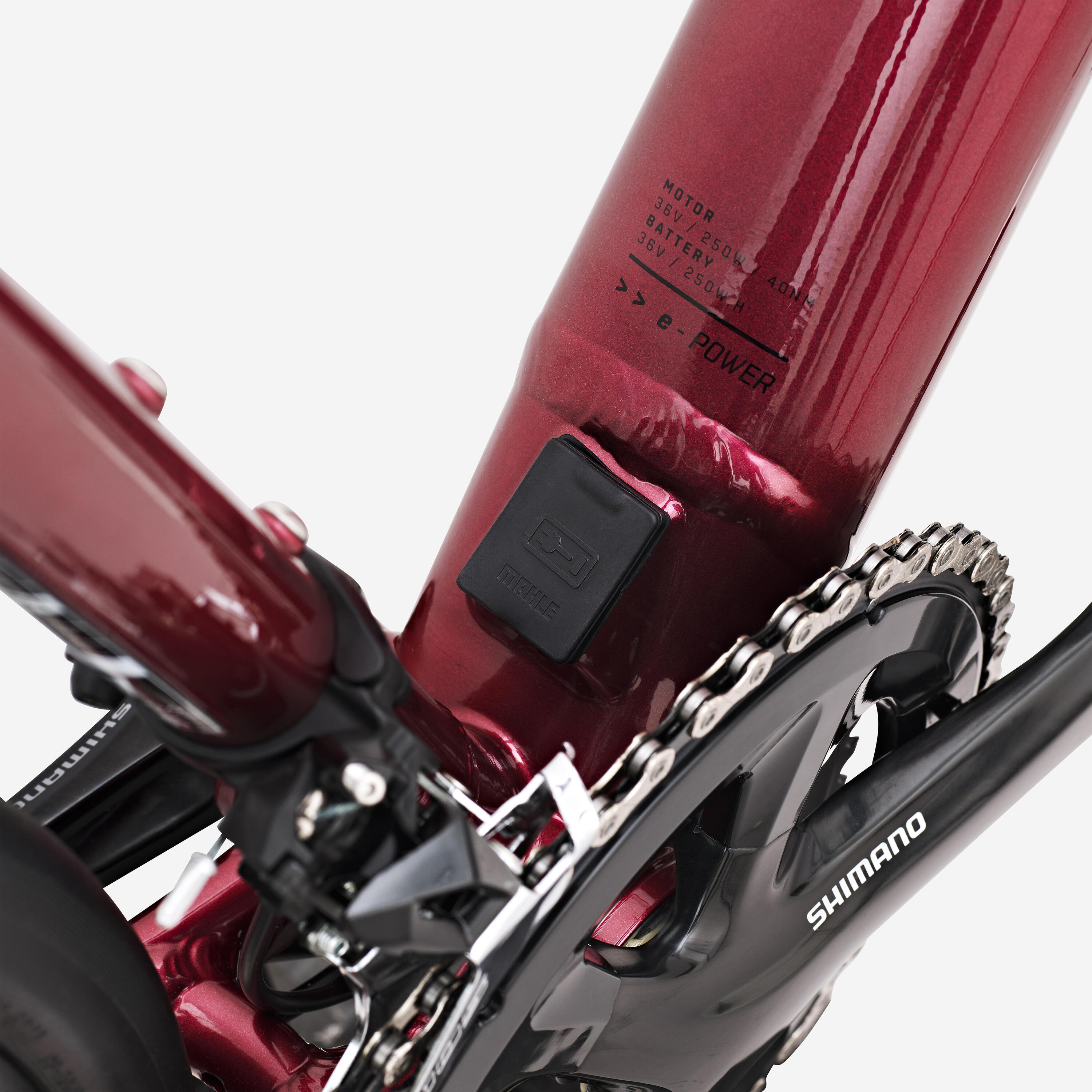

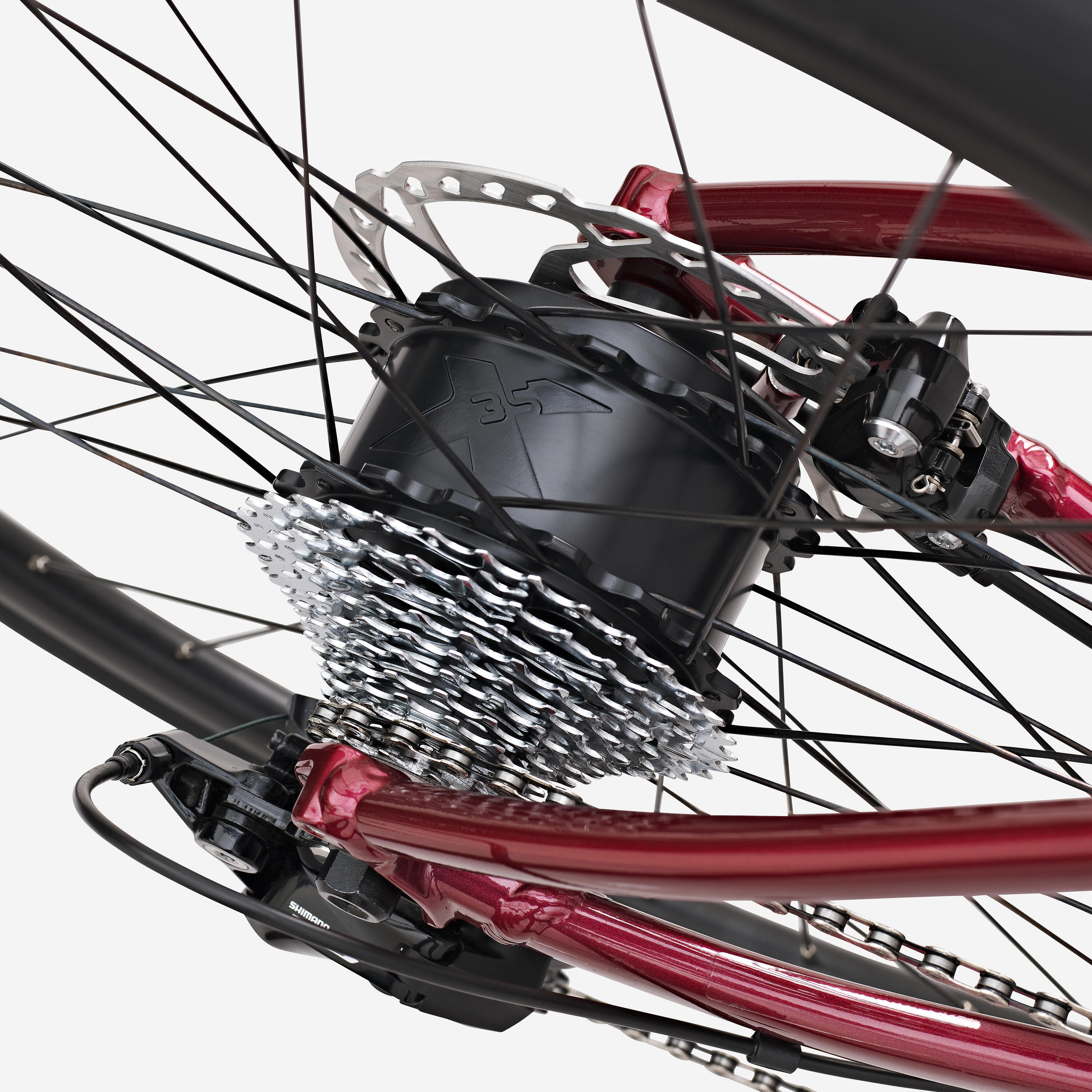

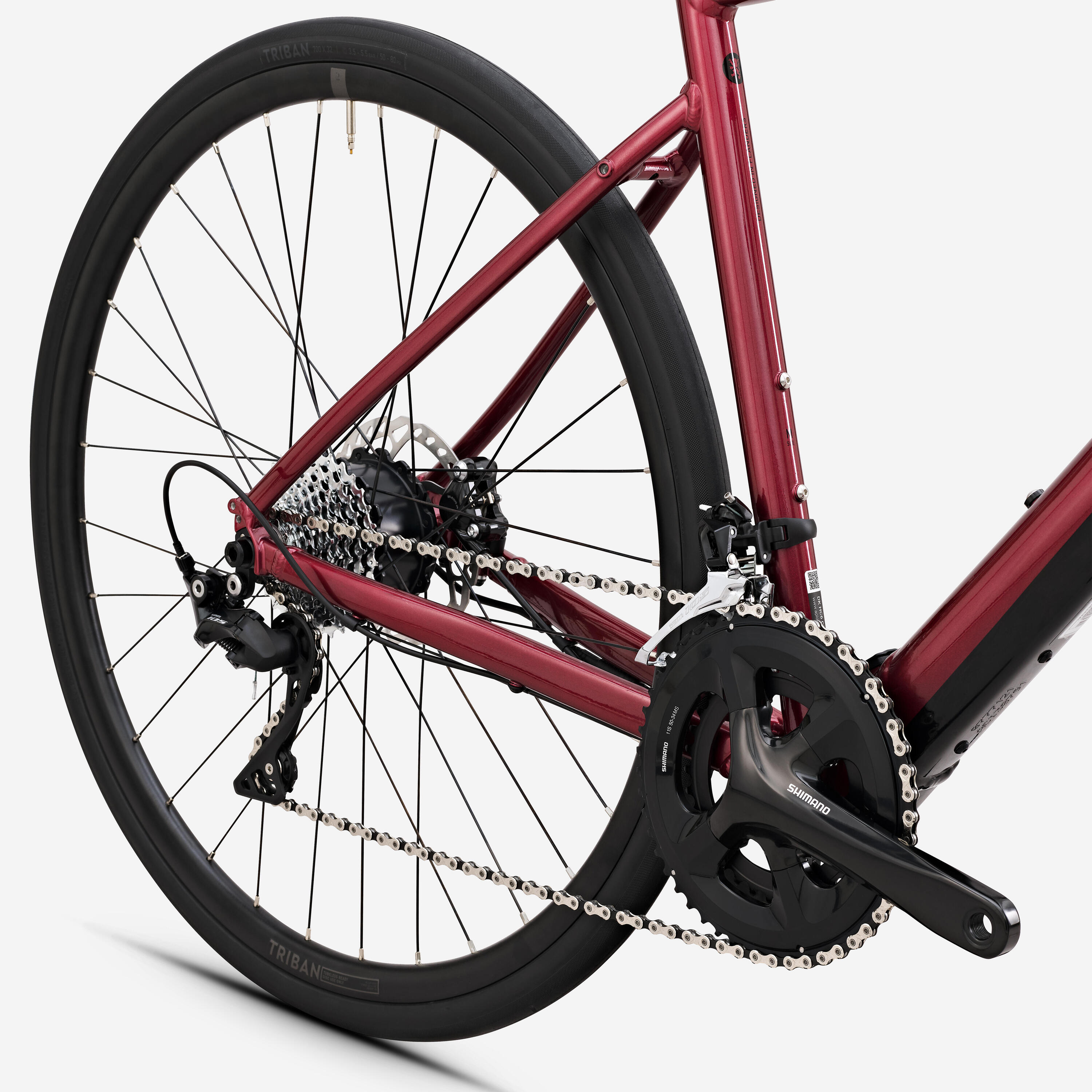

- SHIMANO DRIVE TRAINThis version comes with a Shimano 105 11-speed groupset with the following components: FC RS510 50/34 chainset Variable crank length depending on bike size XS 170 mm S 170 mm M 172.5 mm L 172.5 mm XL 175 mm Cassette: Microshift 11-speed 11-32 Rear derailleur and front derailleur: Shimano 105 R7000 Shifter: Shimano 105 ST-7020 Chain: KMC Bottom bracket: Shimano SM-BB71-41B, press-fit, 86 mm
- DRIVE TRAIN MAINTENANCEPlease note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads). Regular maintenance will help your drive train to last for longer. You should regularly check your chain with our chain wear indicator, which is available on our website.
- Lifespan of a drive trainWhen buying a bike, it's important to take into account the cost of servicing it, especially as regards the drive train. The amounts below are averages and are given so that you have a general idea of what to expect. They will of course vary depending on the care you take of your drive train. The average lifespan of a well-maintained chain is 5000 km. The average lifespan of a cassette is 10,000-12,000 km. A poorly maintained chain can jump, which can damage your bike's frame.
- DISC BRAKESShimano 105 disc brakes with 160 mm rotors at the front and back. The Shimano 105 brakes are hydraulic. This gives you progressive, more powerful braking than with cable-actuated hydraulic brakes. You will need to bed these brakes in. Just do a set of 20 progressive brakes at a low speed (20 km/h), then a second set at 30 km/h. You need to thoroughly wear in both brakes. This enables better traction between the pad and the disc.
- Hydraulic brake maintenanceHydraulic brakes function using a closed circuit between your brake lever and your caliper. There is a hose to maintain the seal. With time, you'll see a normal loss of pressure in your hoses, leading to a loss of braking efficiency. When your brake guard is too soft, or you stop short against your handlebar, you need to bleed your system. This requires specific tools and knowledge.
- Warning and adjustmentPLEASE NOTE:never squeeze the brakes without a wheel being attached, as you could get the brake pads stuck together. If your disc touches, follow these instructions to re-align the wheel and the caliper: - Loosen the wheel axle - Brake hard and tighten the wheel axle at the same time - If the disc touches again, you'll need to do the same thing while loosening the caliper - If the problem continues, visit a store.
- Wheels and tyresVan Rysel wheels, specially designed for e-bikes. 19C inner rim width 12x100 front axle Special rear axle Tubeless-ready wheels. Please note: always carry a 17 mm spanner with you so you can take your back wheel off if you get a puncture! Van Rysel 32 mm tyre: the perfect balance of performance and durability. We expect it to last for 6000 km in normal road cycling conditions.

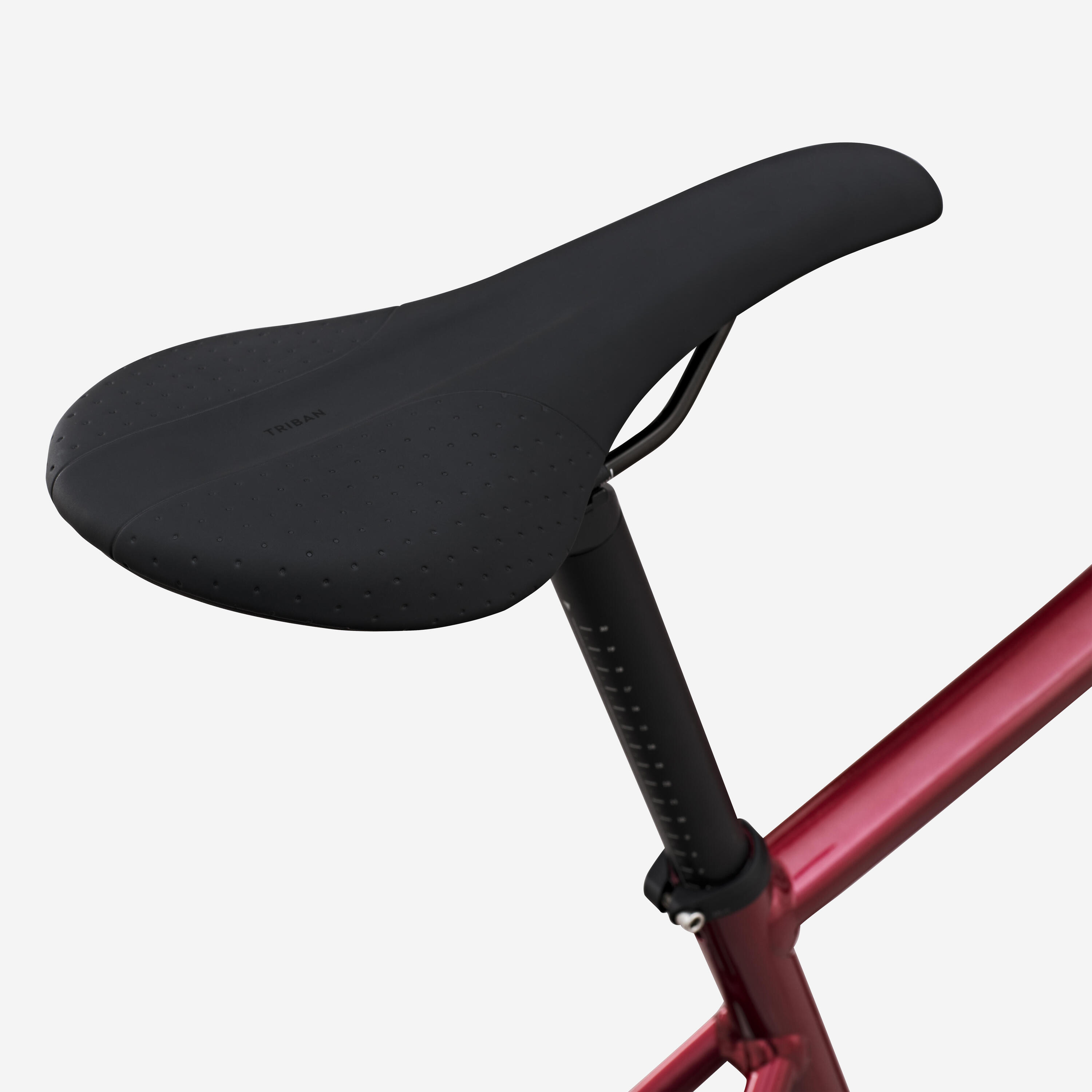

- POSITIONVan Rysel aluminium seat post, 27.2 mm diameter XS: 200 mm S: 300 mm M/L/XL: 350 mm Van Rysel Sport 900 saddle
Features
Design benefits
Design details
Specifications
Details
| level of practice | intermediate |
| frequency | occasional, all frequencies |
| suspension | stiff |
| power assisted | with electric assistance |
| maximum load | 110 kg |
| number of speeds | 11 speeds |
| bike frame material | aluminium frame |
| motor position | wheel motor (hub) |
| number of chainrings | double chainring |
| wheel size | 700 mm |
| etrto | 32-622 |
| connected | connected |
| type of bicycle fork | full carbon fork |
| axle type | through-axle, screw |
| stem type | fixed |
| battery capacity (in Wh) | 200 to 299 Wh |
| connectivity | smartphone compatible |
| type of gearing | chain |
| built-in battery | with built-in battery |
| type of brakes | hydraulic disc brakes |
| weight (in kg) | 14 kg |
| removable battery | non-removable battery |
| charger type | cable, sector |
| handlebar material | aluminium |
| handlebar width | 420 mm |
| rim material | aluminium |
| saddle | rail |
| stem material | aluminium |
| autonomy (in km) | up to 100 km |
| stem length (in mm) | 100 mm |
| tubeless compatibility (tyre) | tubeless compatible |
| tubeless compatibility (wheel) | tubeless compatible |
| tyre assembly | with tubeless inner tube |
| bike frame weight (in g) | 1950 g |
| bike fork weight (in g) | 400 g |
| cassette | 11/32 |
| crankset | 50/34 |
| crank length (in mm) | 172.5 mm |
| front disc size (in mm) | 160 mm |
| rear disc size (in mm) | 160 mm |
| wheel material | aluminium |
| wheel rim width (in mm) | 19 mm |
| maximum tyre clearance (in mm) | 35 mm |
| seatpost material | aluminium |
| seatpost diameter | 27.2 mm |
| engine torque maximum | 40 Nm |
| wheel set weight (in g) | 3700 g |
| number of bottle-cage holders | 4 |
Composition
Bike frame: 100.0% Aluminium |
