Highlights

Smart bike with app insights

So you can unlock live data, post-ride stats, and bike updates.
Say goodbye to battery packs

The battery is seamlessly integrated into the frame for easy charging.
Large colour display screen

Revolutionise your cycling game with performance stats displayed on a large colour screen for extra clarity.

Vélo VTT électrique semi rigide 29" - E-EXPL 520 mangue

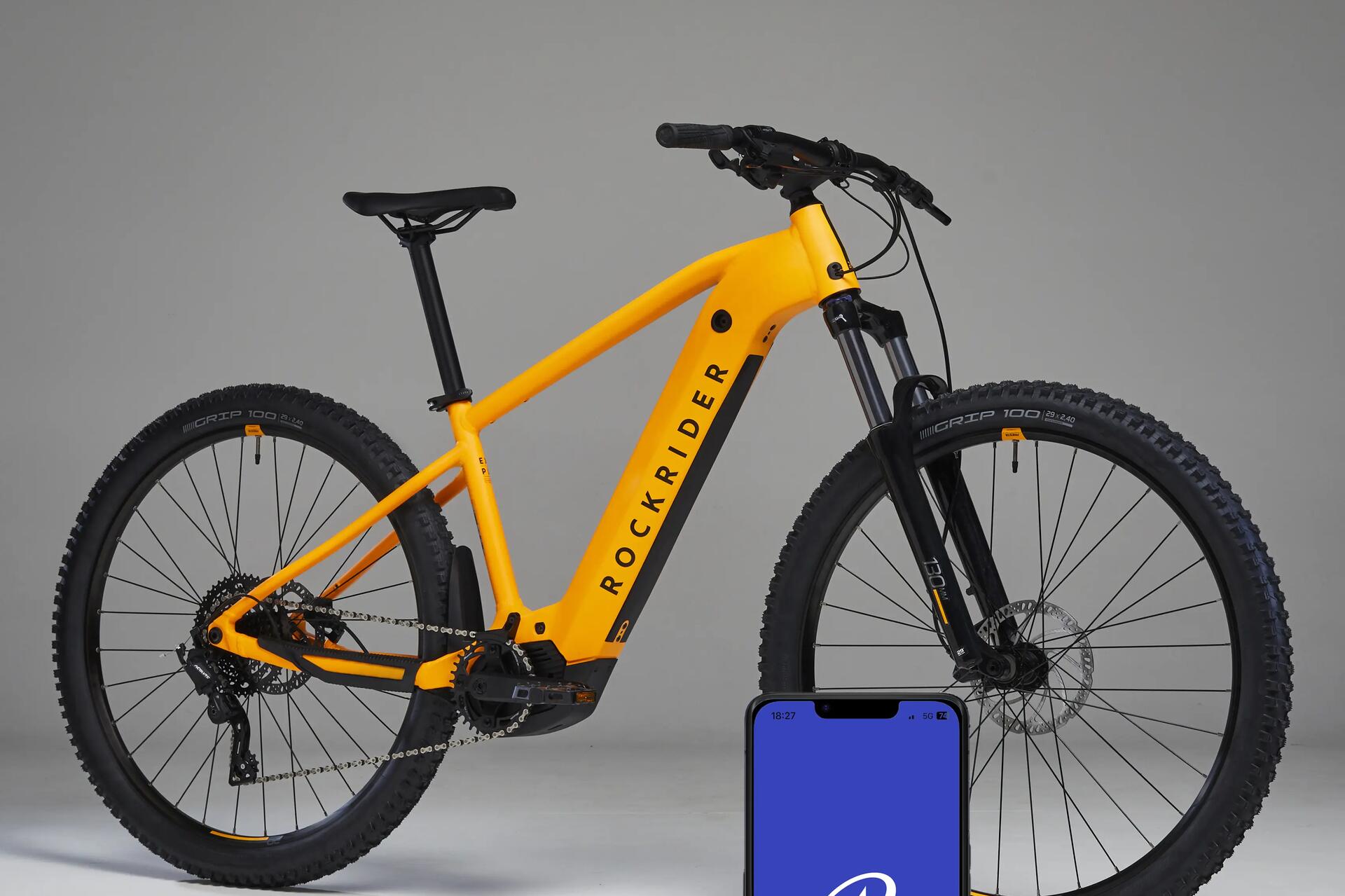

Smart bike with app insights

So you can unlock live data, post-ride stats, and bike updates.

Features

Design benefits

autonomy
Ride up to 80 km + 44 km with the battery extension
power
Attack your climbs with the 420 W motor with 50 Nm of torque.
connectivity
Download the Decathlon Ride app and unleash your bike's full potential!
smooth pedalling
The built-in motor automatically assists you when needed. Perfect for MTBing.

Design details

In a nutshell
Weight: 23.8 kg (in size M without pedals) Mid-drive motor: Yamaha PWCE 50 Nm Battery: 500 Wh Connectivity: Decathlon Ride mobile application Frame material: Aluminium Type: Hardtail Wheel size: 29" Fork travel: 130 mm Drive train: 1x08 Brakes: Hydraulic Seatpost: Fixed Frame, handlebar and stem warranty: lifetime
Motor
Yamaha PW-CE motor Mid-drive position 50 Nm torque Torque sensor Max assistance: 280% The electrical assistance cuts out above 25 km/h in accordance with EU regulations
Battery
Battery fully integrated into the frame with side outlet for easy gripping. Capacity: 500 Wh With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles). Compatible with a 360 Wh battery extension, sold separately (up to 44 additional km, at a low gradient)
Display
ERGO 900 TFT colour screen, 5 assistance modes: 1,2,3,4 and Auto Pedestrian assistance mode. Connected via Bluetooth. The control unit is installed on the left side and tilted downwards, for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.
Connectivity
Download the Decathlon Ride app and unleash your bike's full potential! The Decathlon Ride app is compatible: - For Apple devices: iOS 8 and later versions - For Android telephones: Android 7 and later versions.
Weight
S: 23.7 kg M: 23.8 kg L: 23.9 kg XL: 24 kg Net weight without pedals
Frame
Frame made of 6061 aluminium Fully built-in battery, with side outlet Tapered steering socket 31.6 mm diameter seatpost 2-bottle cage mount
Drive train
Microshift Acolyte 34 T chainring with chain guide Microshift Acolyte 8-speed rear derailleur Crank: 170 mm Microshift Acolyte right shifter with speed indicator Microshift Acolyte 8-sprocket 12 to 46 T cassette KMC E8S chain
Suspension
Suntour XCM 130 fork Travel: 130 mm Dampers: 34 mm Axle: Thru axle Format: 110 x 15 mm Offset: 51 mm Technology: Spring with preload adjustment Adjustment: preload
Wheels
29" Rockrider wheels Size 29" compatible with wide tyres: up to 2.6" 25 mm (width between brackets), 32 spokes Format: Boost Discs: 6-hole Cassette body: HG Tubeless Ready, equipped with a watertight rim base (requires Tubeless tyres, special Presta valves and puncture-proof liquid)
Brakes
Tektro M276 hydraulic disc brakes Number of pistons: 2 Front disc: 180 mm Rear disc: 180 mm 6-bolt mounting
Riding position

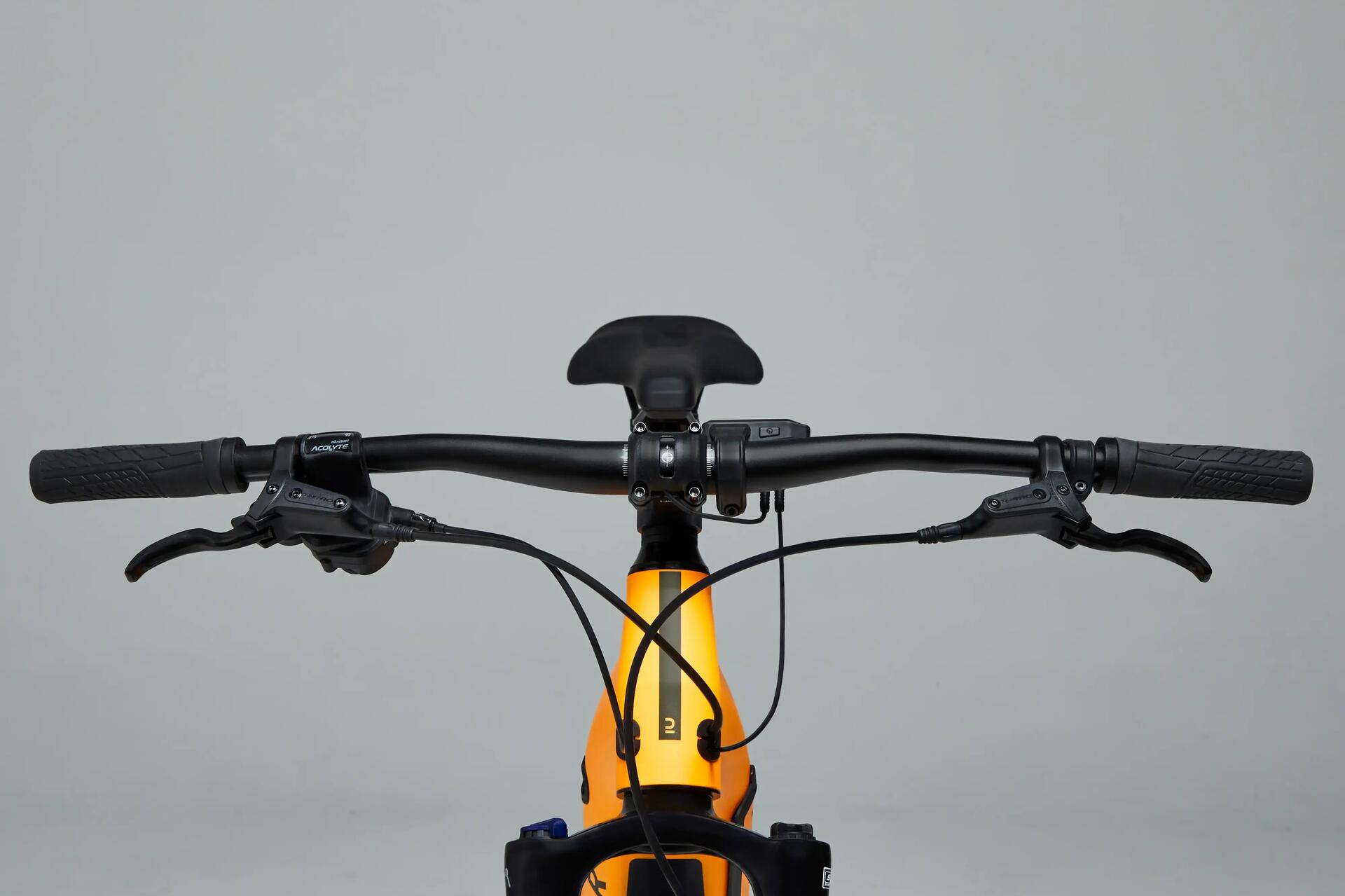

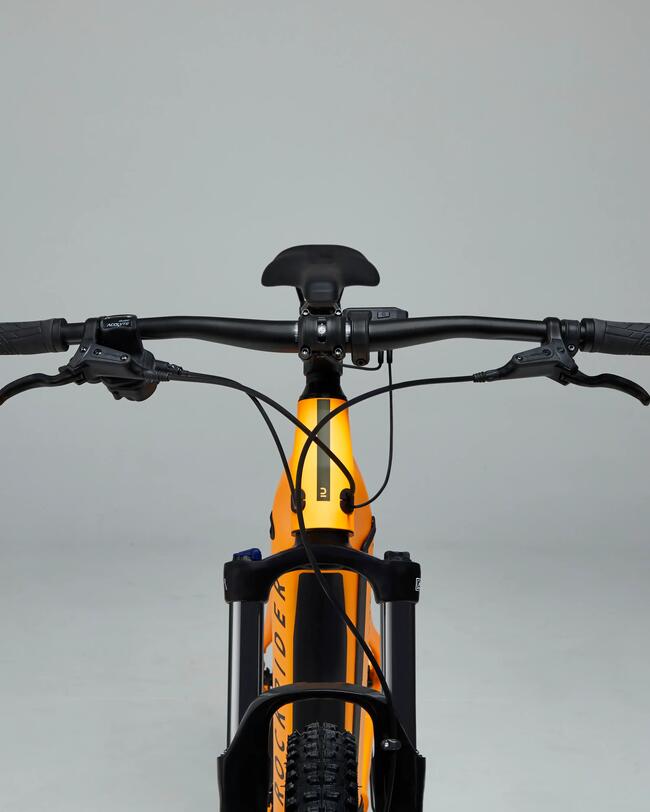

Rockrider Sport handlebar Material: Aluminium Diameter: 31.8 mm Width: 740 mm (S, Ms) 760 mm (L, XL) Rise: 10 (S, M), 25 (L, XL) Upsweep: 0° (S, M), 6° (L, XL) Backsweep: 9° Rockrider stem Material: Aluminium Angle: 7° Sizes: 50 mm (S), 60 mm (Ms / L), 70 mm (XL) Grips: Rockrider Ergo Lock On Headset ZS 44/28.6 - 56/40
SADDLE / SEAT POST
60° Decathlon Core saddle Rockrider Sport aluminium seatpost diameter: 31.6 mm Length: 300 mm (S) / 350 mm (M) / 400 mm (L) / 450 mm (XL) Seat clamp collar: aluminium, fast adjustment
Tyres
Rockrider Grip 100 29" x 2.4" Tube Type (not compatible with Tubeless) Bead: soft Carcass: 60 TPI 1 ply Sidewalls: Skinwall Tread: single rubber
PEDALS
Rockrider Flat Evo Resin
Accessories included
Your MTB comes with: 2A charger bell, lights, wheel reflectors and pedals.

Go higher, further, longer

Lifetime (frame, stem, handlebars). Availability of spare parts: 2 years.Guaranteed for 500 charges.

Care instructions
Usage precautions
Max weight: 120 kg (rider + kit + bike).
Storage
Store it in a warm, dry place away from corrosive products and salty air. Never store with the battery flat, and remember to recharge it at least once every six months.
Cleaning
- Do not wash.
- Do not dry clean.
- Do not iron.
- Do not tumble dry.
- Bleaching excluded.

Highlights

Smart bike with app insights

So you can unlock live data, post-ride stats, and bike updates.
Say goodbye to battery packs

The battery is seamlessly integrated into the frame for easy charging.
Large colour display screen

Revolutionise your cycling game with performance stats displayed on a large colour screen for extra clarity.

Smart bike with app insights

So you can unlock live data, post-ride stats, and bike updates.

How to repair or replace

Bike repairs

Even with regular maintenance, it's common for some components to wear over time. Most bike repairs are relatively easy, so it's useful to have a few key tools so you can get back to riding again quickly. Some tools are specific to bike parts (a chain whip/cassette removal tool) and others are more common (Allen keys). However, if you do not feel comfortable doing a repair yourself, you can take your bike to your local Decathlon workshop where our technicians will be happy to help.

How to use

Running in your brakes

When a bike leaves the store, the pads and discs are new and the brake performance is reduced. Continuous braking (in descent), can lead to overheating and "glazing" of the pads. That's why we recommend you break them in with a dozen brake applications (with a deceleration from 25 to 5km/h, without blocking the wheel, using only one brake at a time). If brake pads do become glazed (smooth and shiny) you can sand them lightly with fine sandpaper. Re-assemble your pads and give them a new run-in.

Connecting your smartphone

You can connect your smartphone to the E-EXPL 520 S via Bluetooth. This gives you access to:

- Better battery life management
- The route and all your output data (downloadable directly from Strava)
- Updates to your electrical components

To access all this and so much more, simply download the DECATHLON RIDE app.

Maintaining your bike

The maintenance of your bike is essential to extend the life of its components so you can enjoy your bike for longer. Apart from the importance of having a clean bike, you also need to ensure regular maintenance to avoid premature wear, rust, and seized wiring which can lead to accidents. After initial use, some components may move slightly. This is why we offer free adjustment of your MTB within 6 months of purchasing. Take a look at our website to find your nearest Decathlon bike workshop.

level of practice	intermediate
intensity	low intensity
power assisted	with electric assistance
maximum load	120 kg
number of speeds	8 speeds
bike frame material	aluminium frame
motor position	middle position
wheel size	29"
connected	connected
battery capacity (in Wh)	400 to 499 Wh
weight (in kg)	24 kg
built-in battery	with built-in battery
condition	new
type of brakes	hydraulic disc brakes
removable battery	removable battery
charger type	sector
autonomy (in km)	up to 80 km
handlebar diameter	31.8 mm
number of bottle-cage holders	2
seatpost compatibility	telescopic seatpost compatible
trunk bag fixation	trunk bag fixation
type of seatpost	rigid
engine torque maximum	50 Nm
front suspension travel	130 mm
handlebar width	740 mm
rear suspension travel	not concerned
suspension	semi stiff

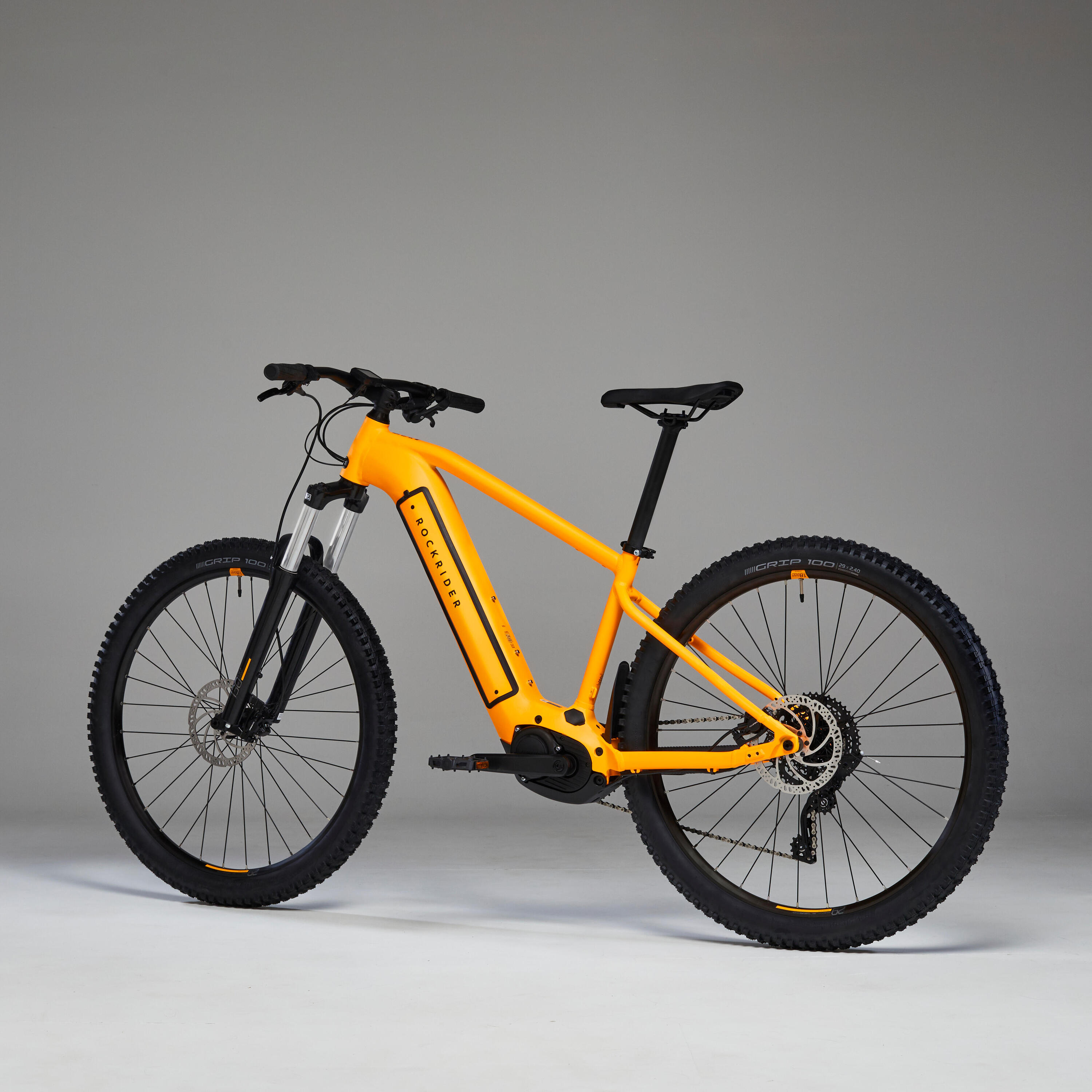

29" Hardtail Electric Mountain Bike E-Expl 520 - Mango
